powersoft X8 User Manual

18
X8 | SERVICE MANUAL
INDEX

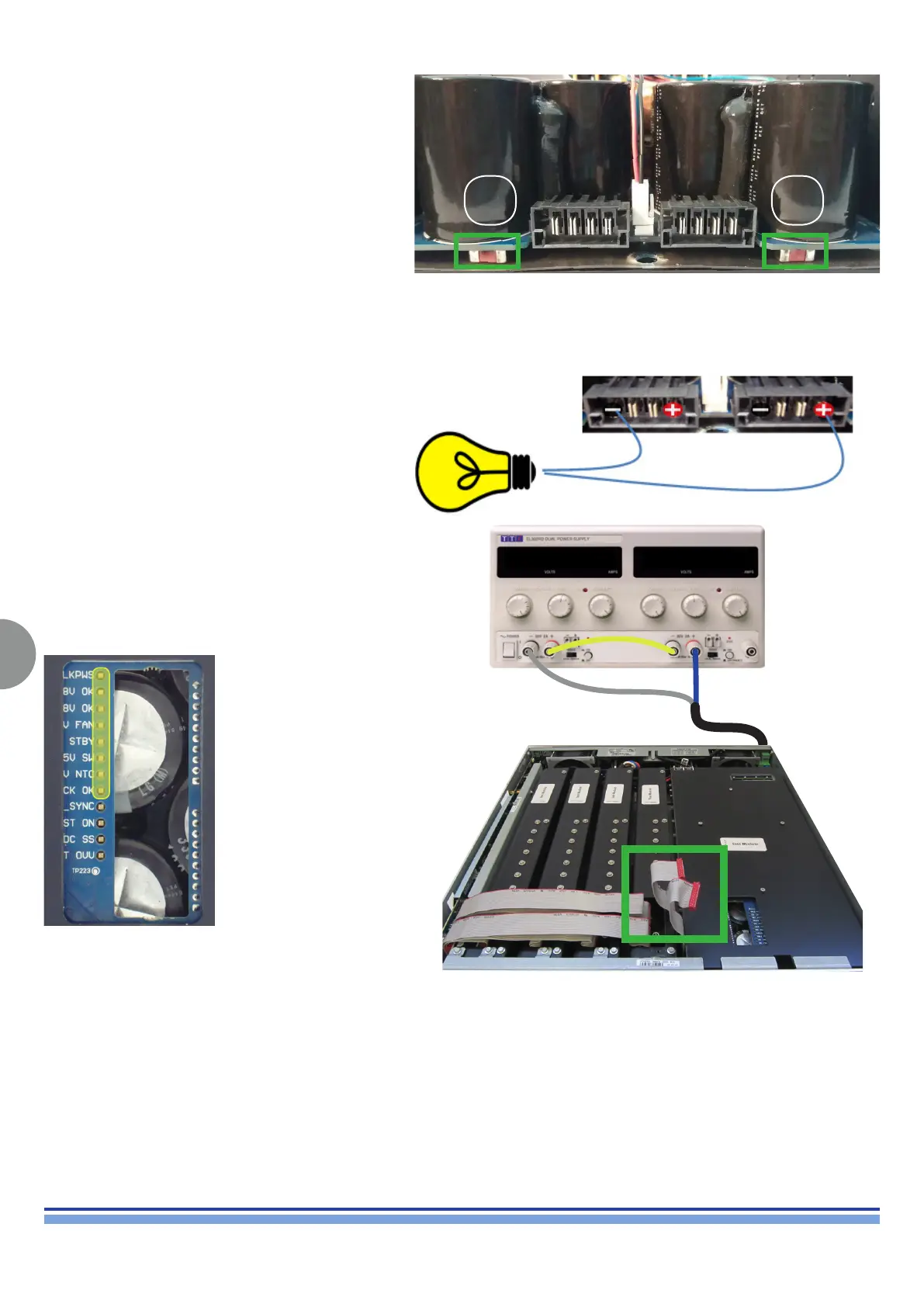

If the VRail Tensions are not present, check the fuses
located underneath the capacitor’s bank, highlighted on
(Fig. 20)
Discharge the capacitor’s bank, reset the PSU Module
into the chassis and repeat the test.
Check if the LEDs highlighted in the picture below are on.
Remember not to connect the two micromatch cable, as
portrayed on (Fig. 21)
(Fig. 20)
(Fig. 21)
30 Vdc 250mA 30 Vdc
C C

powersoft X8 Specifications

General

Channels	8
Signal to Noise Ratio	> 112 dB
Damping Factor	> 5000
Power Supply	Universal switching power supply (100-240V, 50/60Hz)
Networking	Ethernet
DSP	Yes, with FIR filters
Load Impedance	4Ω, 8Ω
Input Impedance	20 kΩ balanced
Cooling System	Variable speed fan
Frequency Response	5 Hz - 30 kHz
