X8 | SERVICE MANUAL
INDEX
(Fig. 22)
(Fig. 23)
(Fig. 24)
Connect the 2 PSU at cables, and unplug all of the
module’s at cables.
Connect the unit to a Variac, and slowly increase the
voltage to 90Vac.
Check the absorption.

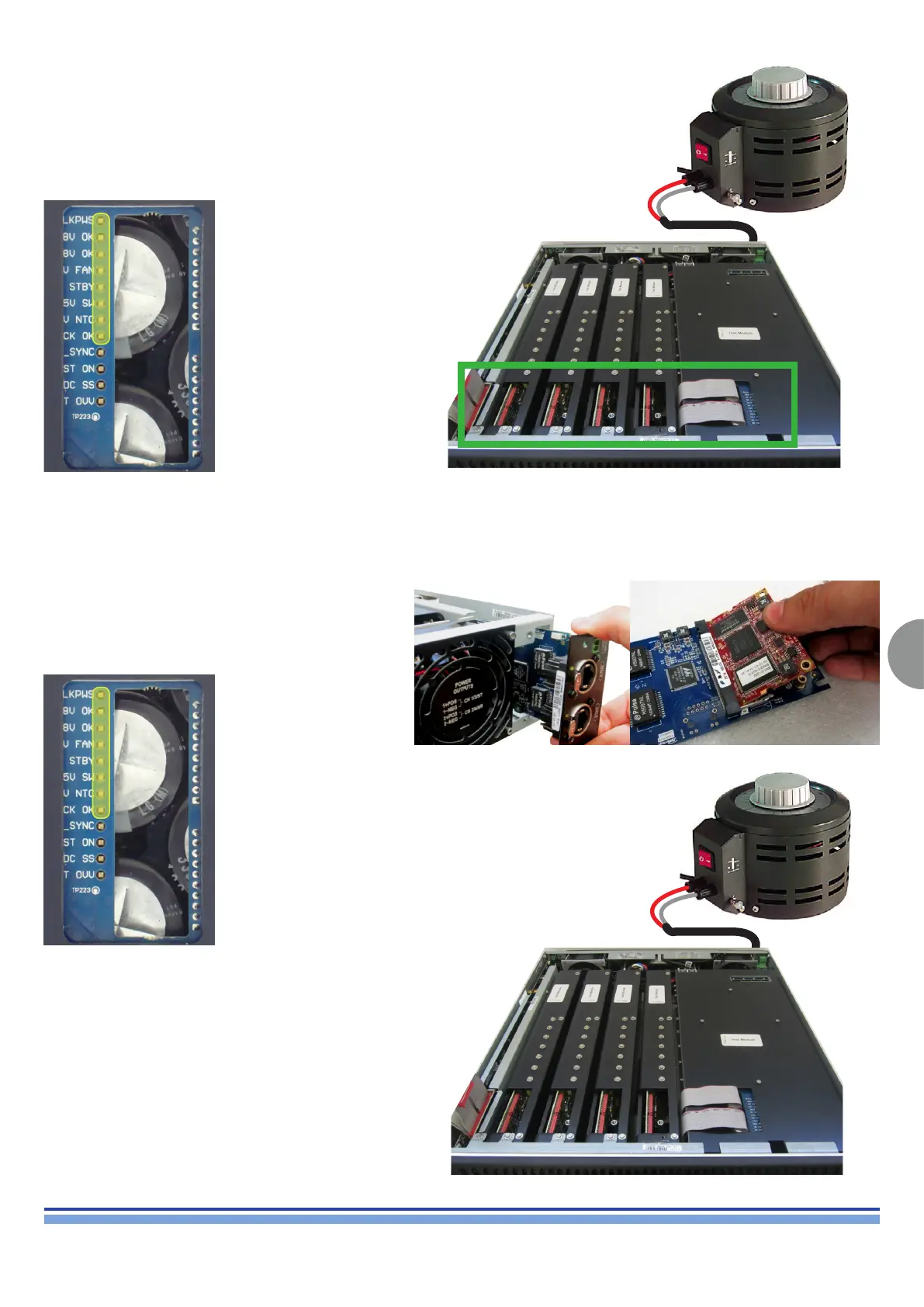

Check if the LEDs highlighted in the picture below are on.
If the absorption values and/or the LED conguration are
out of range remove the ADLINK+DIGI Boards.
Remove the SLOT and the Dante boards, and repeat the
test. (Fig. 23) (Fig 24)
Check if the LEDs highlighted in the picture below are on.
