powersoft X8 User Manual

28
X8 | SERVICE MANUAL

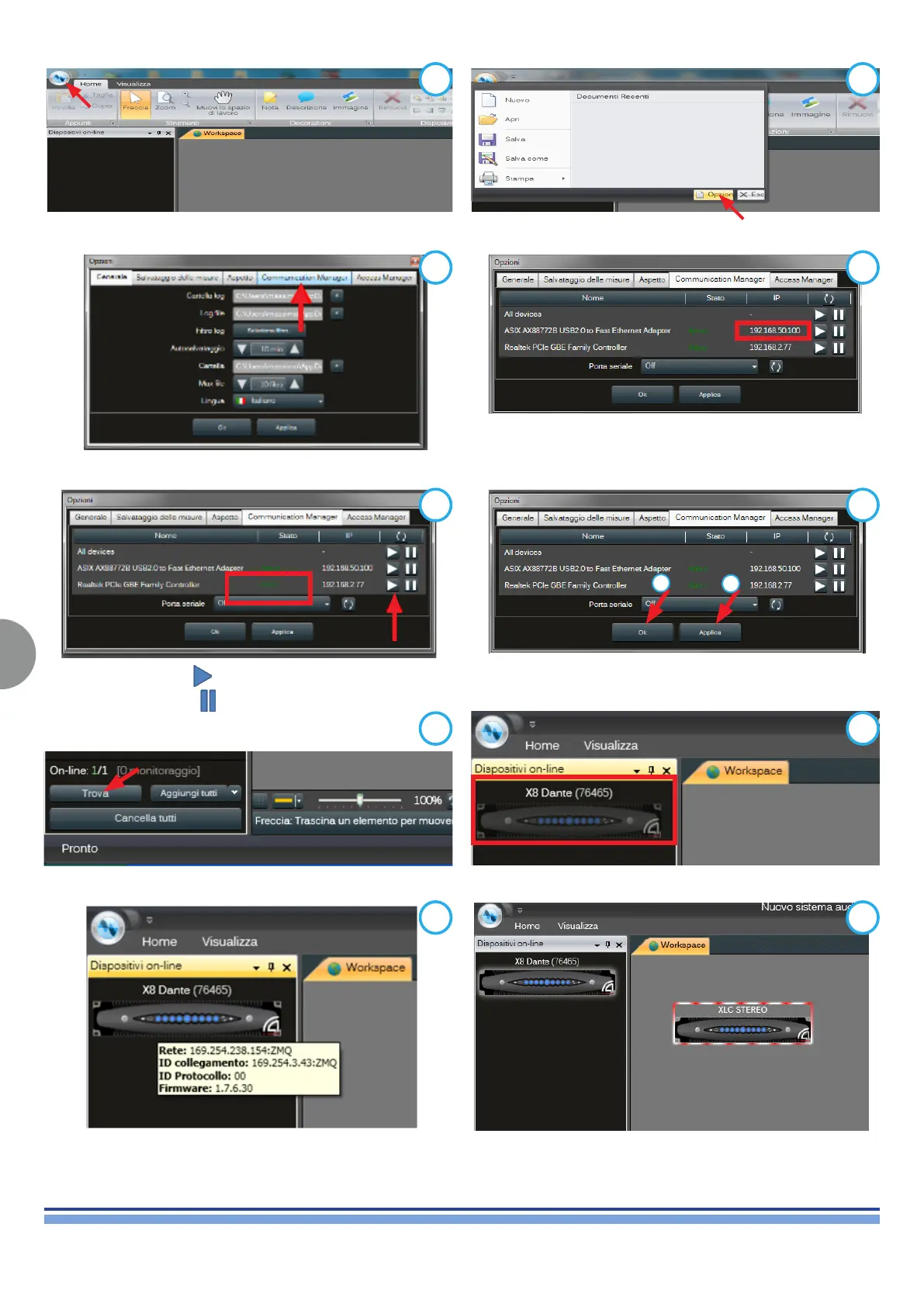

Click on the Armonìa Logo
Click on “Communication Manager”
Click on to activate the network
Click on to pause the network
Click on Apply, and click on OK
Click on “Discover” in order to load the unit on the Workspace Panel
By hover the mouse cursor on top of the unit’s icon it is possible to
check the Model, Serial, Rete(IP Address), Firmware.
Drag and drop the unit into the Workspace, notice the white/red square
around the unit, this happens while Armonìa is discovering the unit.
The Unit and its serial number should appear within 5 seconds
Insert the following IP Address: 192.168.0.01
Click on “Options”
1
2
1
3
5
7
9
2
4
6
8
10
INDEX

powersoft X8 Specifications

General

Channels	8
Signal to Noise Ratio	> 112 dB
Damping Factor	> 5000
Power Supply	Universal switching power supply (100-240V, 50/60Hz)
Networking	Ethernet
DSP	Yes, with FIR filters
Load Impedance	4Ω, 8Ω
Input Impedance	20 kΩ balanced
Cooling System	Variable speed fan
Frequency Response	5 Hz - 30 kHz
