X8 | SERVICE MANUAL

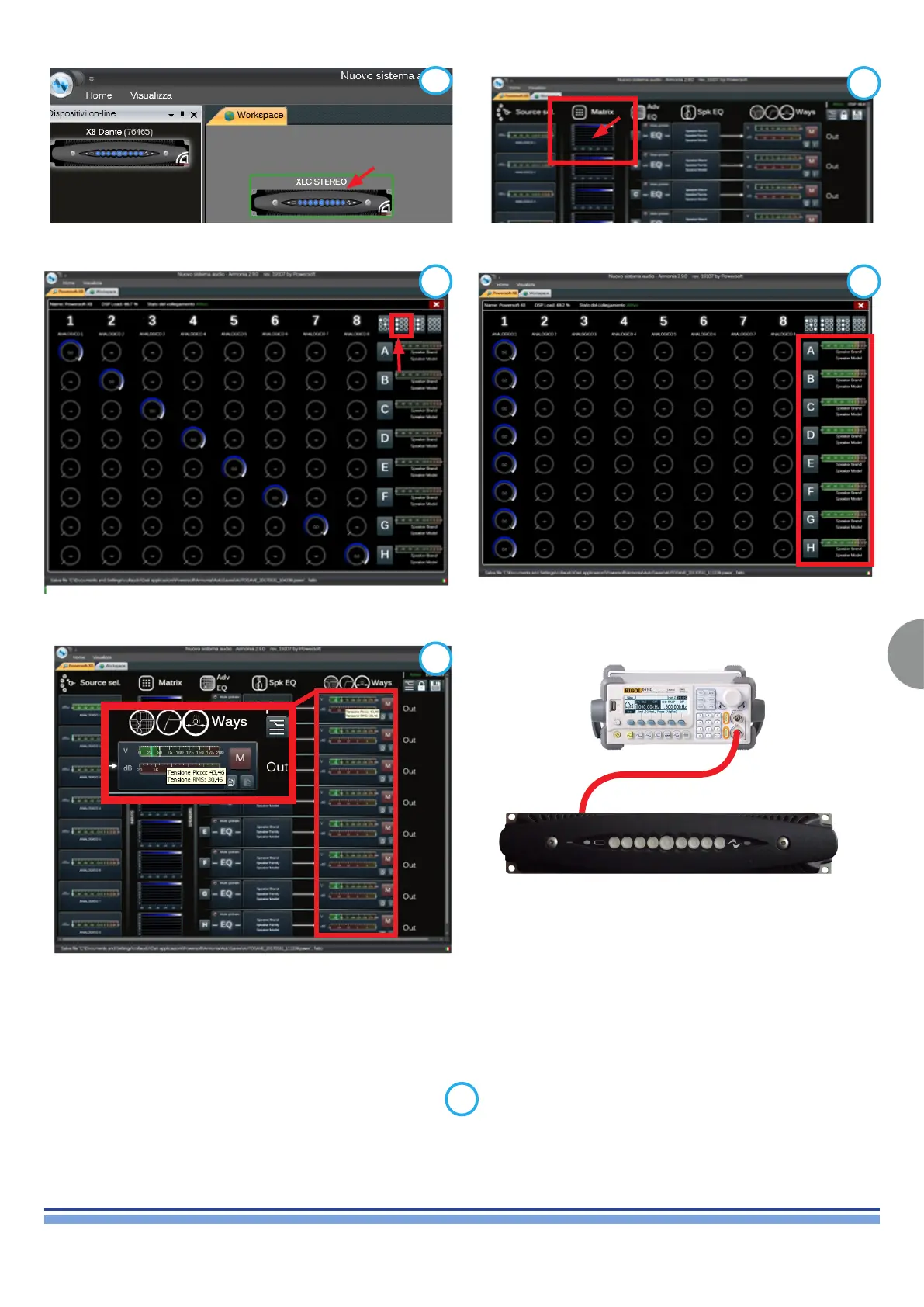

Once the Discovery Phase is complete (10 seconds) the square
will turn Green. Double click on the Unit to continue the test.
Select: ALL INPUTS ON CH1
Apply a 1KHz 1Vpp audio signal to CH1
Check for presence of the signal in all the other channel’s VMeters
Apply a 1KHz 1Vpp audio signal to CH1
Check for presence of output signal in all channels.
Peak Current: 43.46 +/- 5%
RMS Current: 30.46 +/- 5%
Repeat this procedure by connecting the PC to the other ETH port on the unit’s SLOT Board
Double click on the Matrix Area.
11
13
15
16
12
14
Function
Generator
Input 1

powersoft X8 Specifications

General

Channels	8
Signal to Noise Ratio	> 112 dB
Damping Factor	> 5000
Power Supply	Universal switching power supply (100-240V, 50/60Hz)
Networking	Ethernet
DSP	Yes, with FIR filters
Load Impedance	4Ω, 8Ω
Input Impedance	20 kΩ balanced
Cooling System	Variable speed fan
Frequency Response	5 Hz - 30 kHz
