Powerware Plus 80 - Joining Optional Cabinets to each Other (Method B)

Joining Optional Cabinets to Each Other (Method B)
Use this procedure to join any two optional cabinets:
1. Remove the cosmetic covers from the two cabinet sides you are joining
together.
2. Roll cabinet #l to its final position and lower ‘ks leveling feet to anchor it.
3. Roll cabinet #2 to the position shown in Figure 16.
n
ll
Cabinet
1 Cabinet
I
2
152.4
(rninK%) I,
-
1
I- PUSHJ

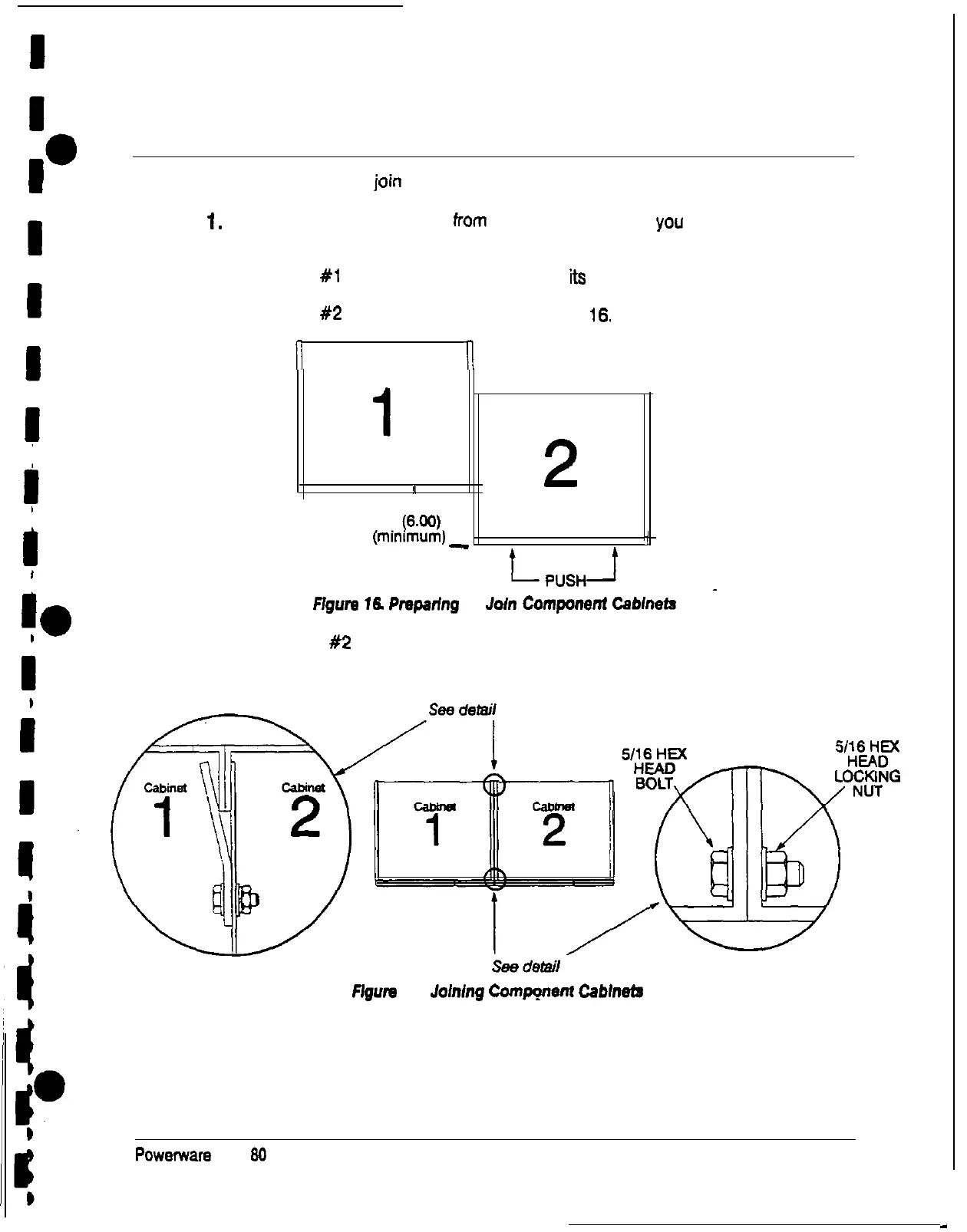

F/gum 16. Preparfng to Joln Componeni Cabheia
4. Push cabinet #2 from the front until both cabinets are aligned at the rear (as
shown in Figure 17). This action will seat the rear joining clamps, as shown in
Figure 17.
F/gum 17. Johing Component Cabheta
5. Locate the hardware joining kit taped to the top of either cabinet.
Using two hex
head bolts and two hex head nuts from the hardware joining kii secure the
fronts of the two cabinets as shown in Figure 17.
6. Attach a ground bus to the joined cabinets using the procedure on page 26.
Powemare Plus 80 UPS Installation Manual
25
