After you unpack and inspect your UPS, and then move it to its installed
location, you are ready to prepare for installing it. The UPS cabinet arrives as

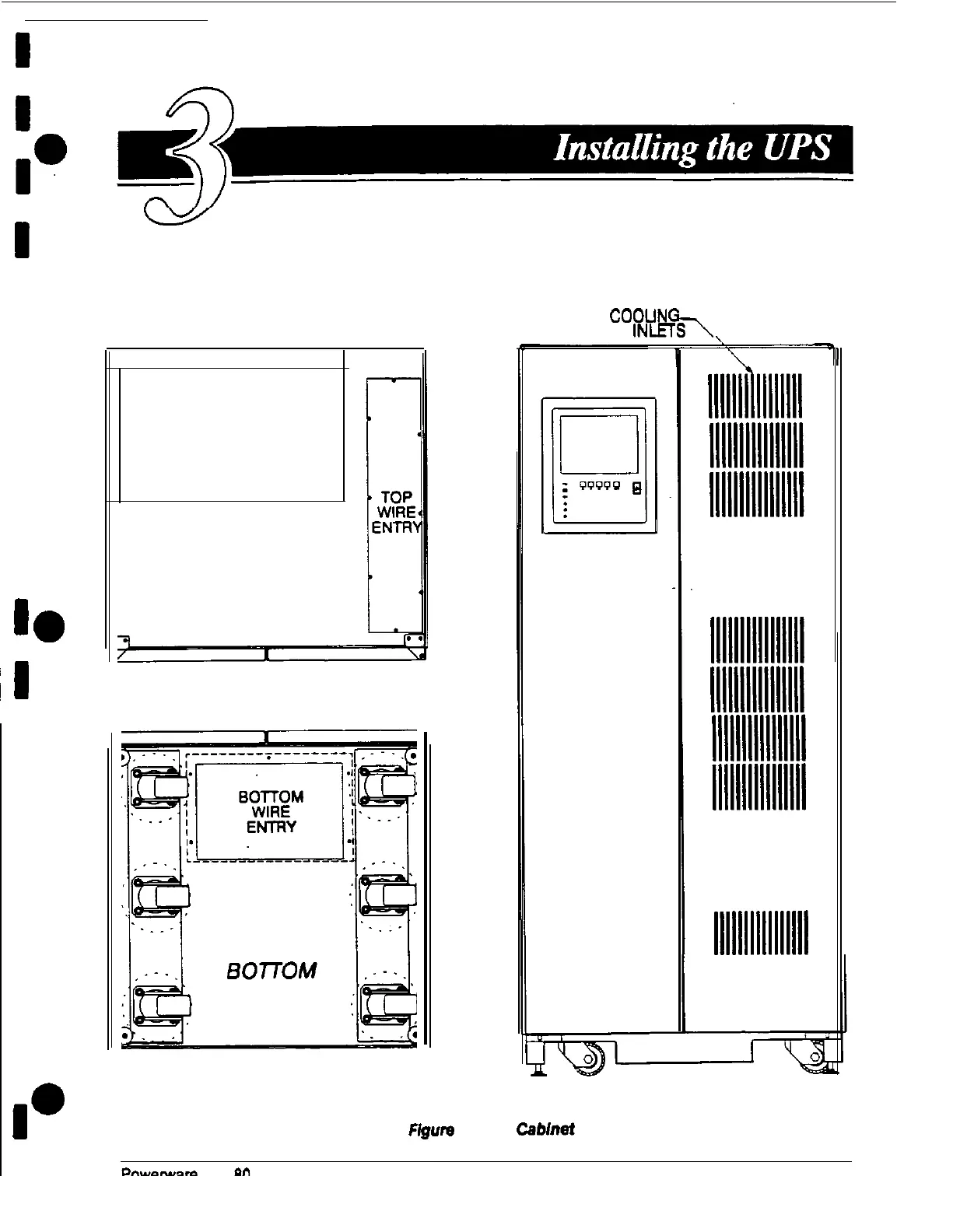

shown in Figure 3 below.
