Pegasus R6, R4 Product Manual
6

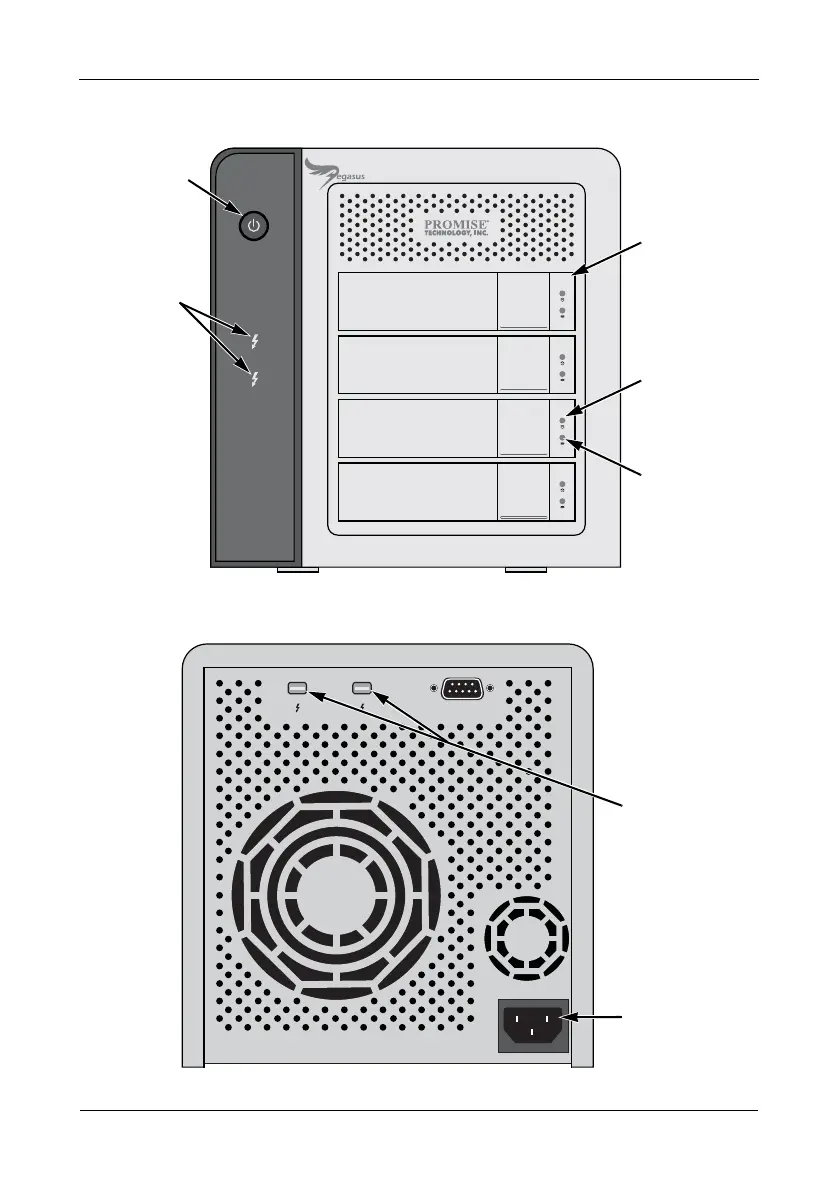

Figure 1. Pegasus R4 front view. The R6 is similar
Figure 2. Pegasus R4 back view. The R6 is similar
Drive Carrier
Drive Power/
Status LED
Drive Activity
LED
Power
Button/LED
Thunderbolt
Link LEDs
Power
Connection
Thunderbolt
Ports
