Chapter 5: Troubleshooting
103
Drive Carrier LEDs
The Pegasus unit spins up the disk drives sequentially to equalize power draw
during start-up. After a few moments:
• The Power/ Status LEDs turn blue.
• The Activity LEDs turn blue if a drive is installed.
The drive carrier Power/Status LEDs report the condition of the physical drives.
See the table on the next page.

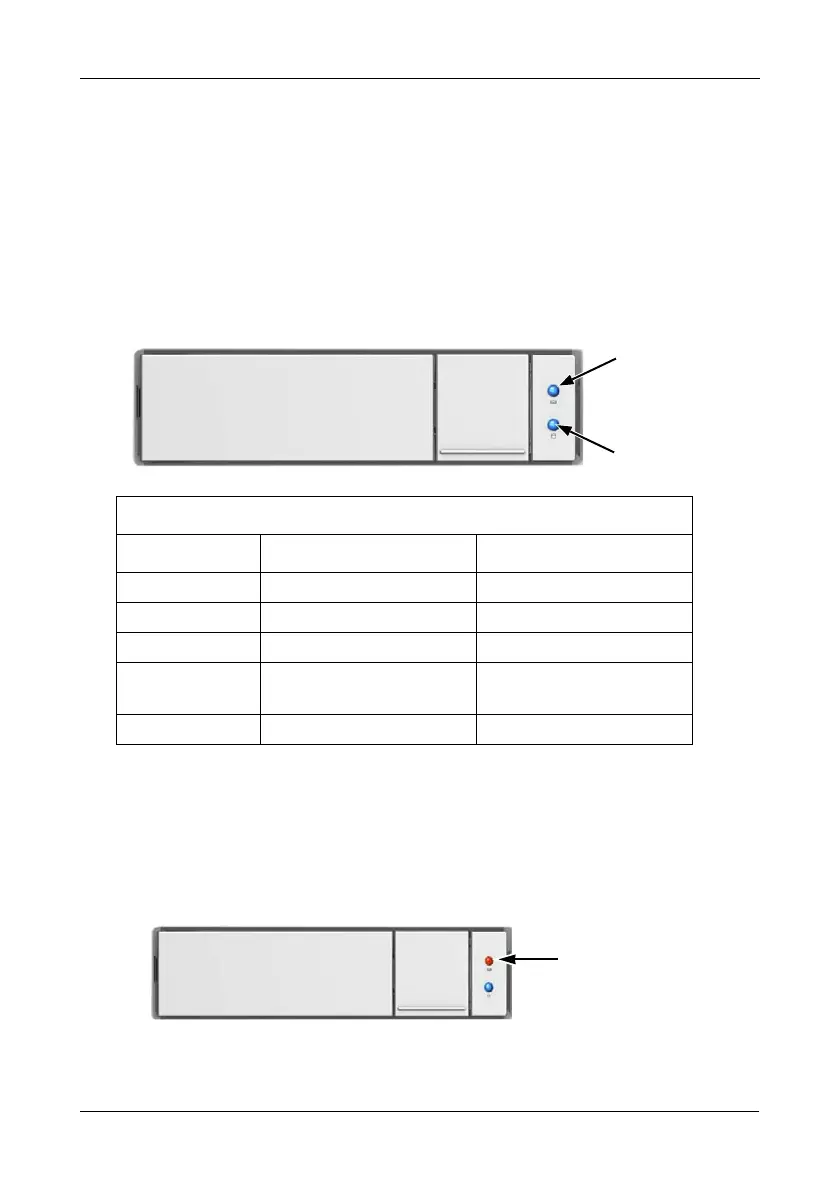

Figure 2. Drive carrier LEDs
See “Physical Drive Problems” on page 106 for a discussion of rebuilding and
failed physical drives for more information.
The Locator feature is triggered from the Promise Utility. It causes the LEDs to
blink orange and blue for one minute. That action helps you find the specific
drive. See “Locating a Physical Drive” on page 41.
Figure 3. Locate feature on a drive carrier
Drive Carrier LEDs
State Power/Status Drive Activity
Dark No power No drive in carrier
Steady Blue Power is present Drive is present
Flashing Blue — Activity on drive
Blinking Blue
and Orange
Locator feature or
Drive is rebuilding
—
Red Drive error or failure —
Power/Status
Drive Activity
Power/Status LEDs
blink blue and orange
To Next Page
