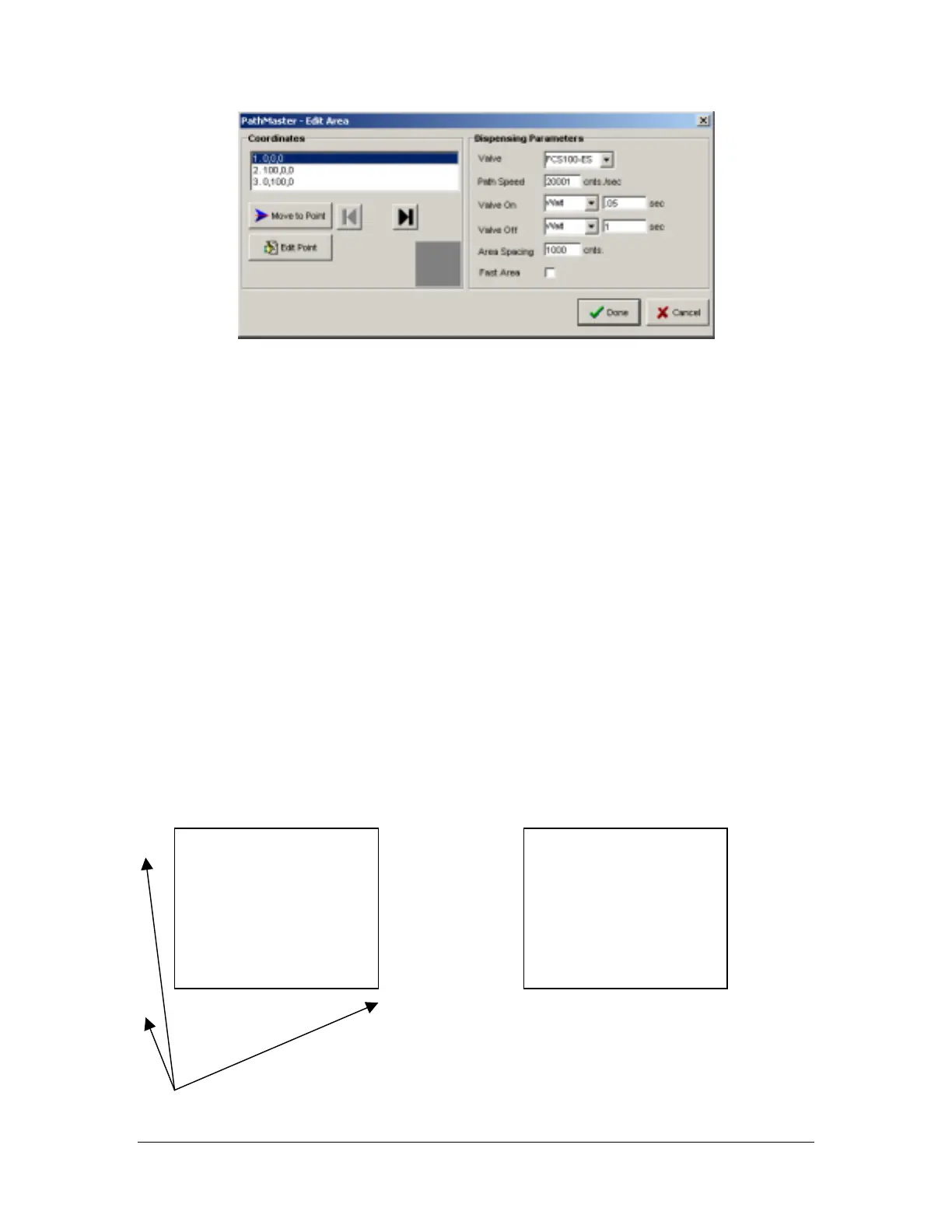

This tool teaches rectangular paths. The Z axis does not alter its position during the path.
• Current Position – If there is communication established with the controller, the current position
appears in the text box. Use the trackball on the Dispensing System to change the position.
• Input Coordinates – Manual entry of target position.
• Dispensing Parameters – Select appropriate parameters for the current dispense, including the active
valve.
Valve On Wait – The pause after turning the valve on but before starting the dispense path.
Valve Off Wait – The pause after finishing the path and turning the valve off but before moving
to the next point.
Valve On Distance – Distance the path traveled before turning the valve on.
Valve Off Distance – Distance the path traveled when turning the valve off, before the path
finishes.
Area (or Path) Spacing – Distance between runs.
• Teach – Record the current point. Equivalent to the F2 key on the Dispensing System. This button
becomes inactive after the third point is taught.
• Done – Add to the program.
• Cancel – Quit without altering the program.
NOTES: Playback is only allowed if the Dispensing System is currently in Manual/Jog/Teach mode.
Only three points are required for the Area tool.
How the Area tool works
Area #1 Area #2
1 1 2
3
2 3
Points
