4. From the designer view of your “Template”, you can add, change and position elements in the Layout.

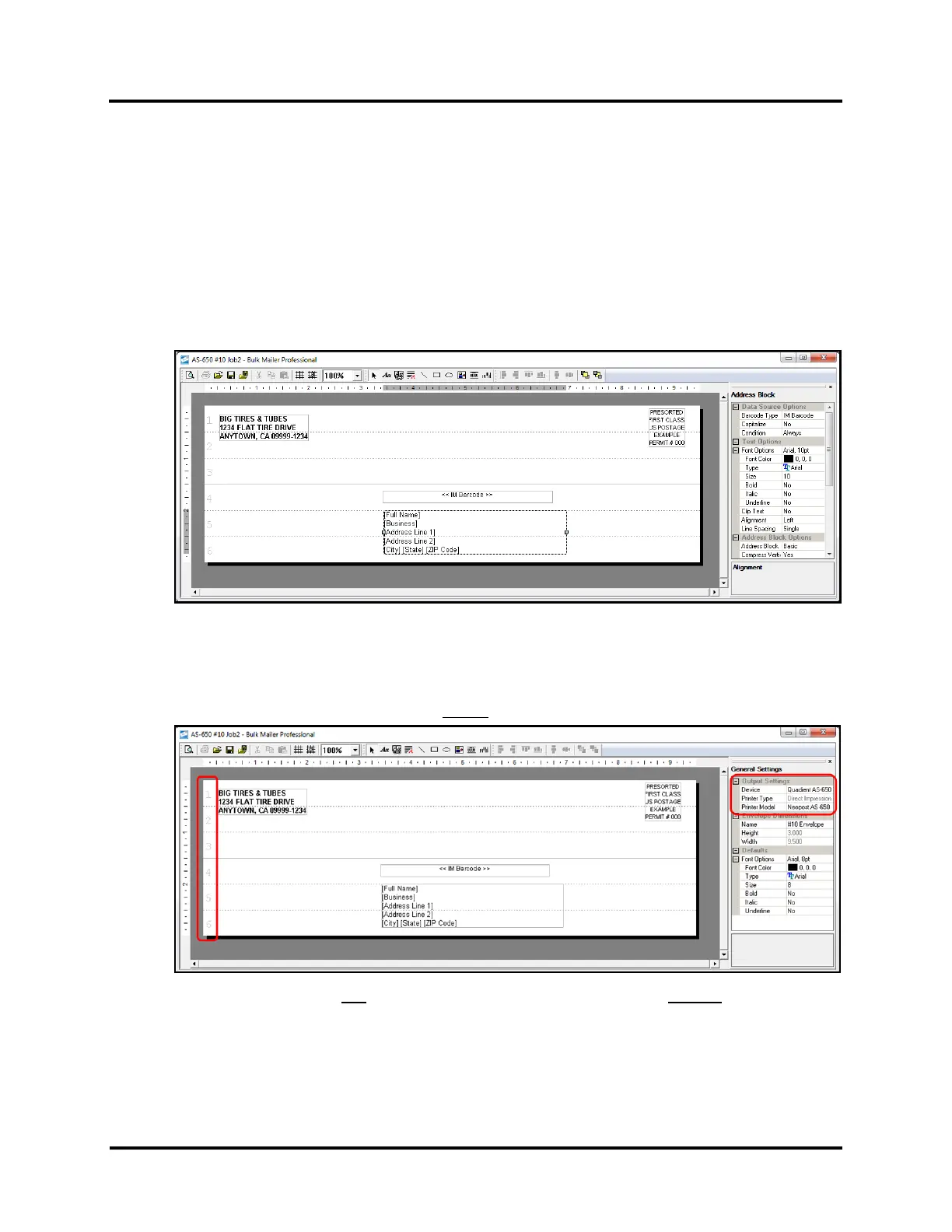

The following Layout example was designed for an AS-650.
It shows a media width of 9.5”, with two “Static Text” elements (return address and indicia) positioned on
Heads 1 & 2, an “IMB Barcode” element positioned on Head 4 and an “Address Block” element positioned on
Heads 5 & 6.
a. Click and drag elements, such as the Address Block or Barcode, to the desired print location in the Layout.
b. Click on an element, such as the Address Block, to access and change Font Options for this element. Font
Options and other features for the selected element can be accessed at the right-side of the designer
screen.
c. The numbers, along the left-side of the Layout, accurately represent the “Head” (cartridge) numbers on
the AS-650 when using the following choices.
- Device: AS-650 (physical printer model)
- Printer Model: AS-650 (the “Direct Impression” choice in Bulk Mailer)
- Print inverted = No in the AS-650 Driver (“normal
” print orientation).
NOTICE: Head numbers are not displayed correctly, in the Layout, when using “inverted” print (Print
inverted in the AS-650 Driver set to Yes).
For example; when using “inverted” print on an AS-650, Head #1 should be at the bottom and Head #6
should be at the top of the Layout. This is not the case.
Print Inverted: Yes = “inverted” - prints up-side-down to operator
Print Inverted: No = “normal” - prints right-side-up to operator
