QUANTA STRATOS S210 Series S210-X22RQ - 3.5-inch HDD System

ABOUT THE SERVER 3.5” HDD SYSTEM
1-6
3.5” HDD System
The system features a 3.5” hard drive arrangment as seen in
the following image.

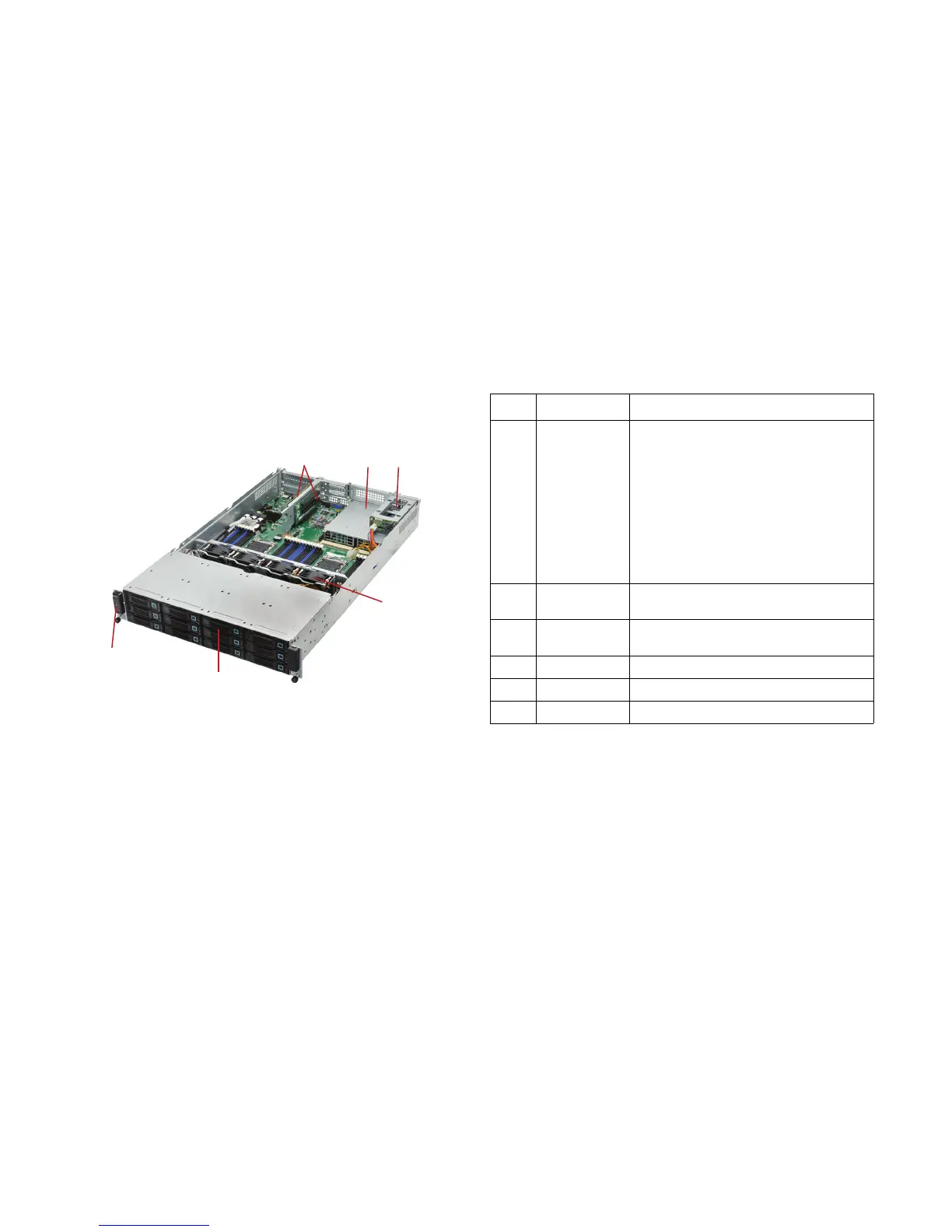

Figure 1-2. 3.5” HDD System Component Description
123
4
5
6
Table 7-1.
N
O.ITEM DESCRIPTION
1.
Riser Assembly
 (1) PCIe x16 G3 low profile riser slot or
(1) PCIe x8 G3 low profile riser slots,
(1) PCI x8 G3 low profile riser slots and
(1) PCIe x4 G3 low profile riser slots
 (2) PCIe x8 G3 low Profile riser slots and
(1) PCIe x4 G3 low profile riser slots
 (1) PCIe x8 G3 10GbE SFP+ Mezzaine
card slot and
(1) PCIe x8 G3 Quanta LSISAS/RAID
Mezzanie slot or
(2) PCIe x8 G3 LP-MD2 riser slots
2.
PSU Cage
(1) 1100W high efficiency PSU, 100-240VAC
(Default)
3.
SSD
(2) 2.5" hot-plug SSD (2*6 Gb AHCI)
(optional)
4. Fans (4) 80 mm fan modules
5. HDD Cage (12) 3.5” SATA/SAS hot plug drives
6. Front Panel Controls and LEDs for system management
