QUANTA STRATOS S210 Series S210-X22RQ User Manual

INSTALLING HARDWARE INSTALLING A POWER SUPPLY UNIT
2-7
2. Press and hold the locking latch lever.
3. Pull the PSU from the system.

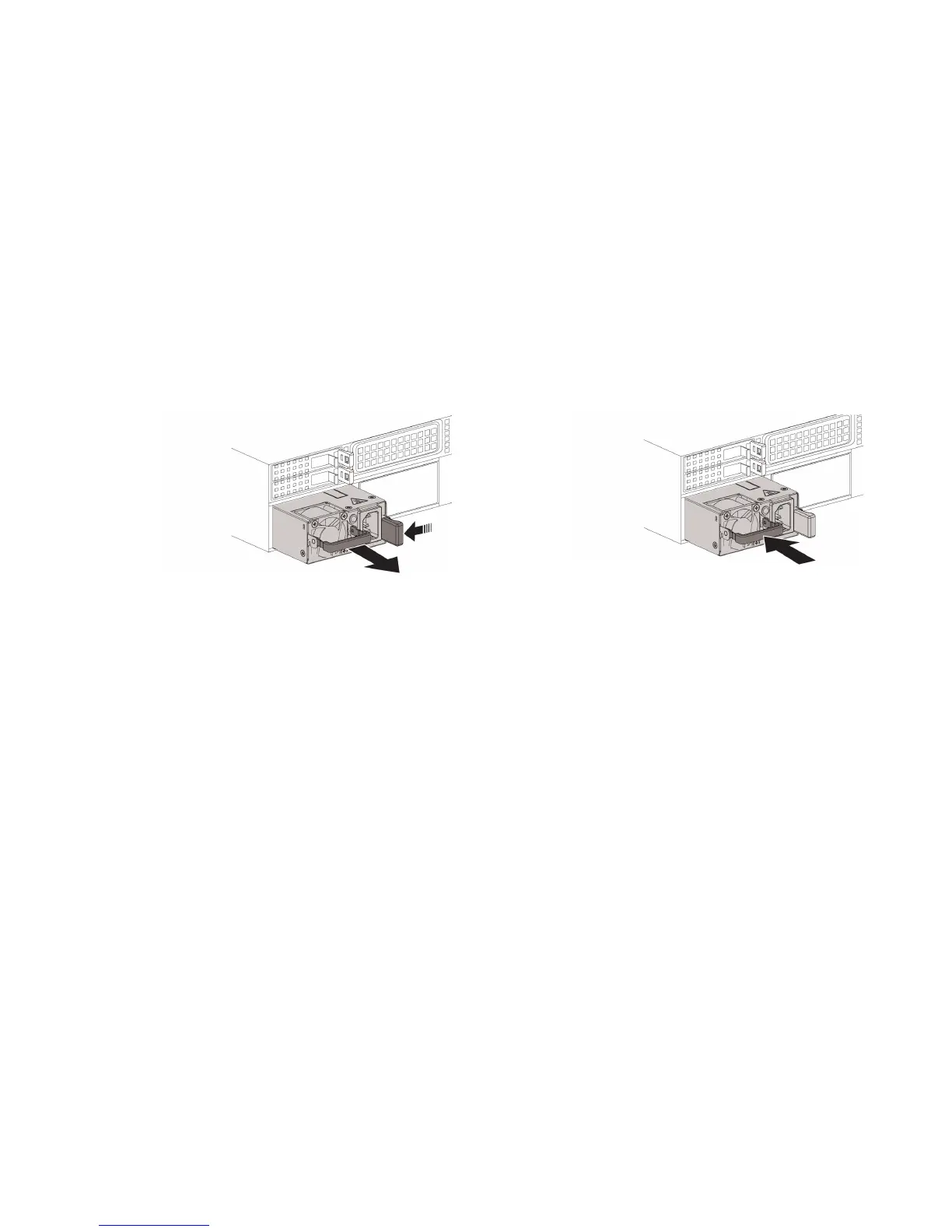

Figure 2-10. Removing the PSU
Installing a Power Supply Unit
Insert the power supply unit (PSU) into the system.
Figure 2-11. Installing a Power Supply Unit
Make sure the PSU is flush with the system and the side lever
is locked in place.
2
3
