INSTALLING HARDWARE AIR DUCT
2-44
2.13 Air Duct
Removing the Air Duct
Prerequisite:
Prerequisite:
Remove the top cover. See Removing the Top Cover on
page 2-8.
Remove the air duct from the chassis.

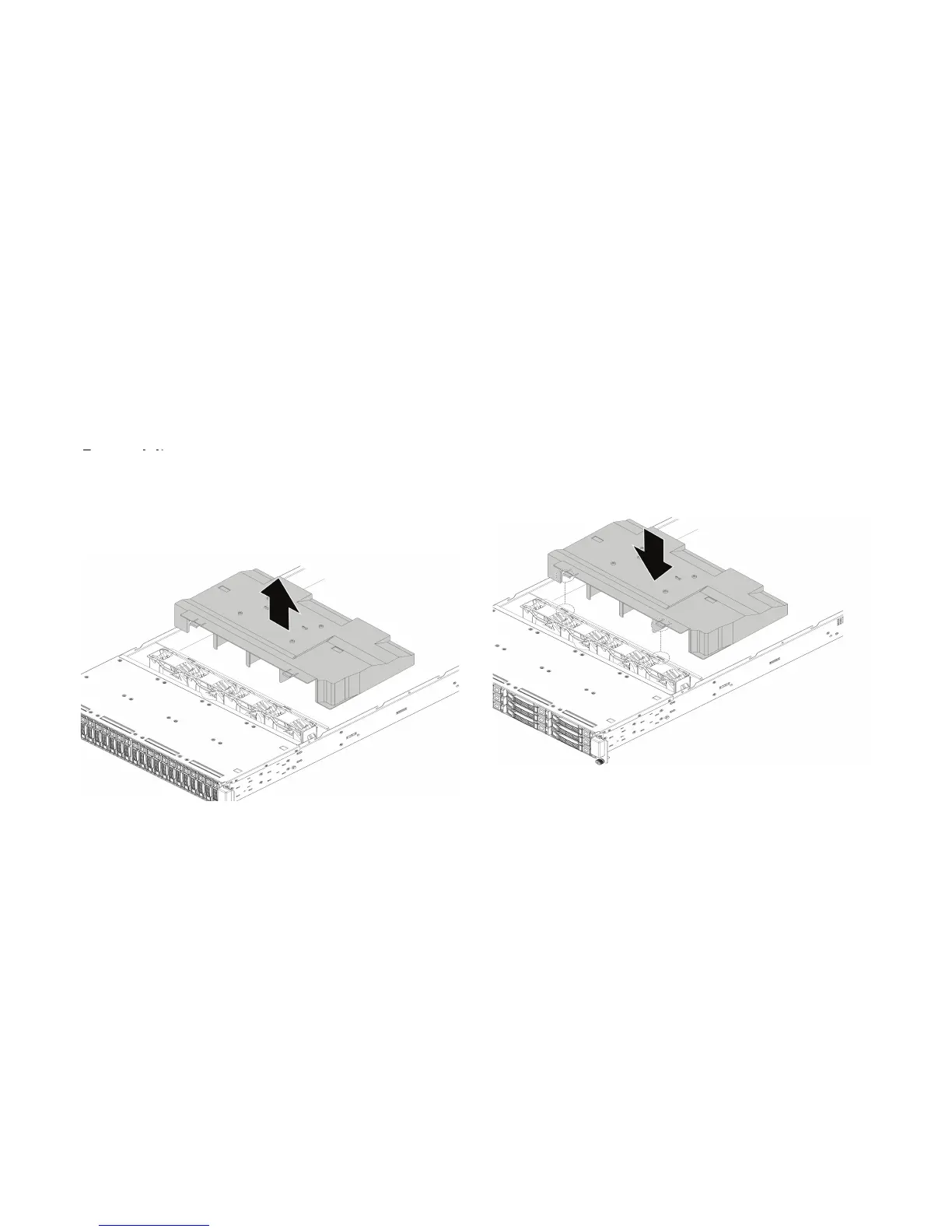

Figure 2-65. Removing the Air Duct
Installing the Air Duct
Remove the top cover. See Removing the Top Cover on page 2-8.
1. Align the air duct with the middle bracket (Figure 2-66).
2. Insert the plastic tabs into the wells in the middle bracket.
Figure 2-66. Installing the Air Duct
