QUANTA STRATOS S210 Series S210-X22RQ User Manual

INSTALLING HARDWARE INSTALLING A PROCESSOR
2-16

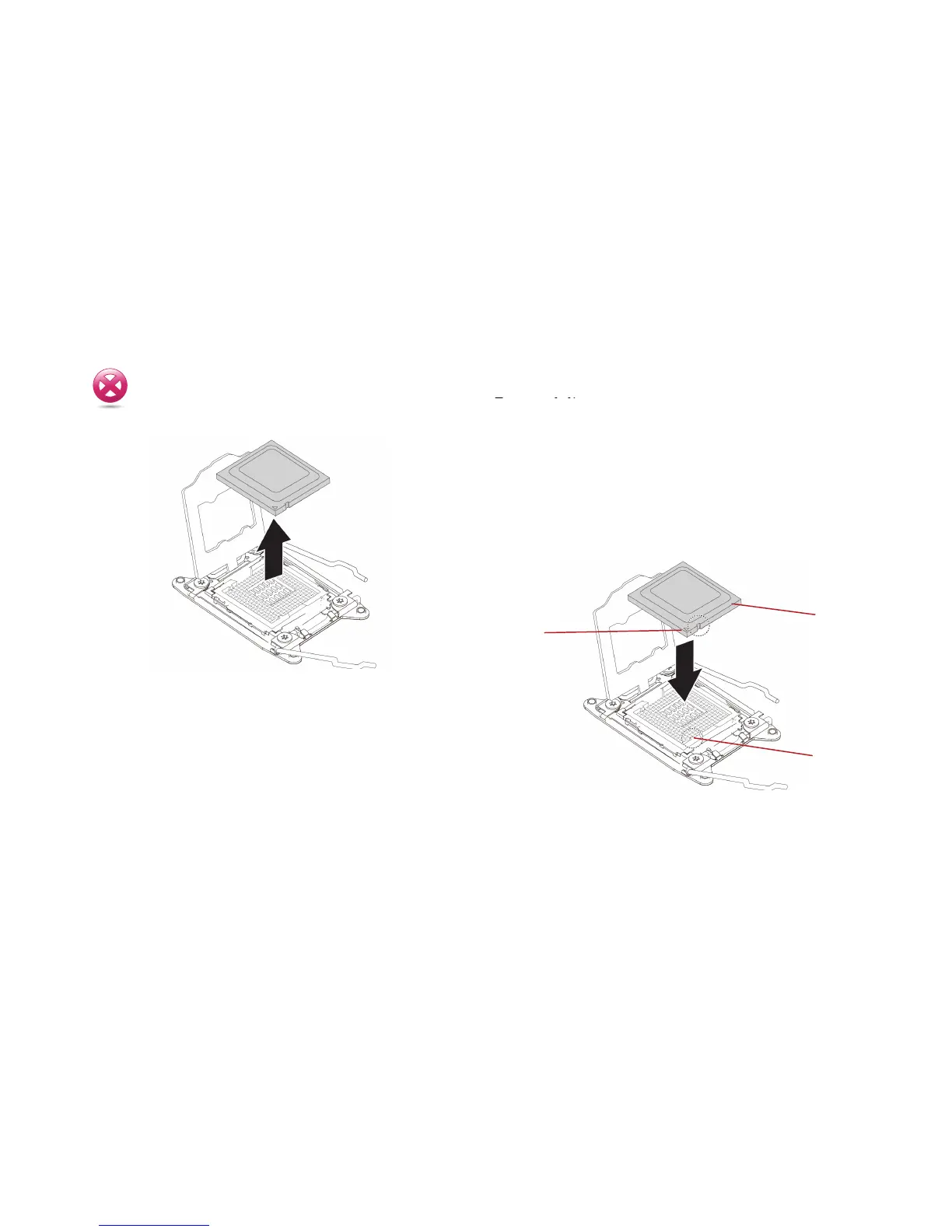

Figure 2-23. Removing the Processor
Installing a Processor
Prerequisite:
Prerequisite:
Remove the top cover. See Removing the Top Cover on
page 2-8.
Remove the CPU heat sink. See Removing a Heat Sink
on page 2-12.
1. Align the gold triangle identifying pin 1 of the processor
with the triangular cutout of the processor, and the four (4)
indents on processor with the four (4) tabs on socket.
Figure 2-24. Installing the Processor
CAUTION!
AVOID CONTACT WITH THERMAL GREASE ON THE PROCESSOR.
Indent
Pin 1
Tab
