INSTALLING HARDWARE REMOVING A PROCESSOR
2-15
2. Carefully press down and outwards on the left processor
locking lever, pulling it fully open.

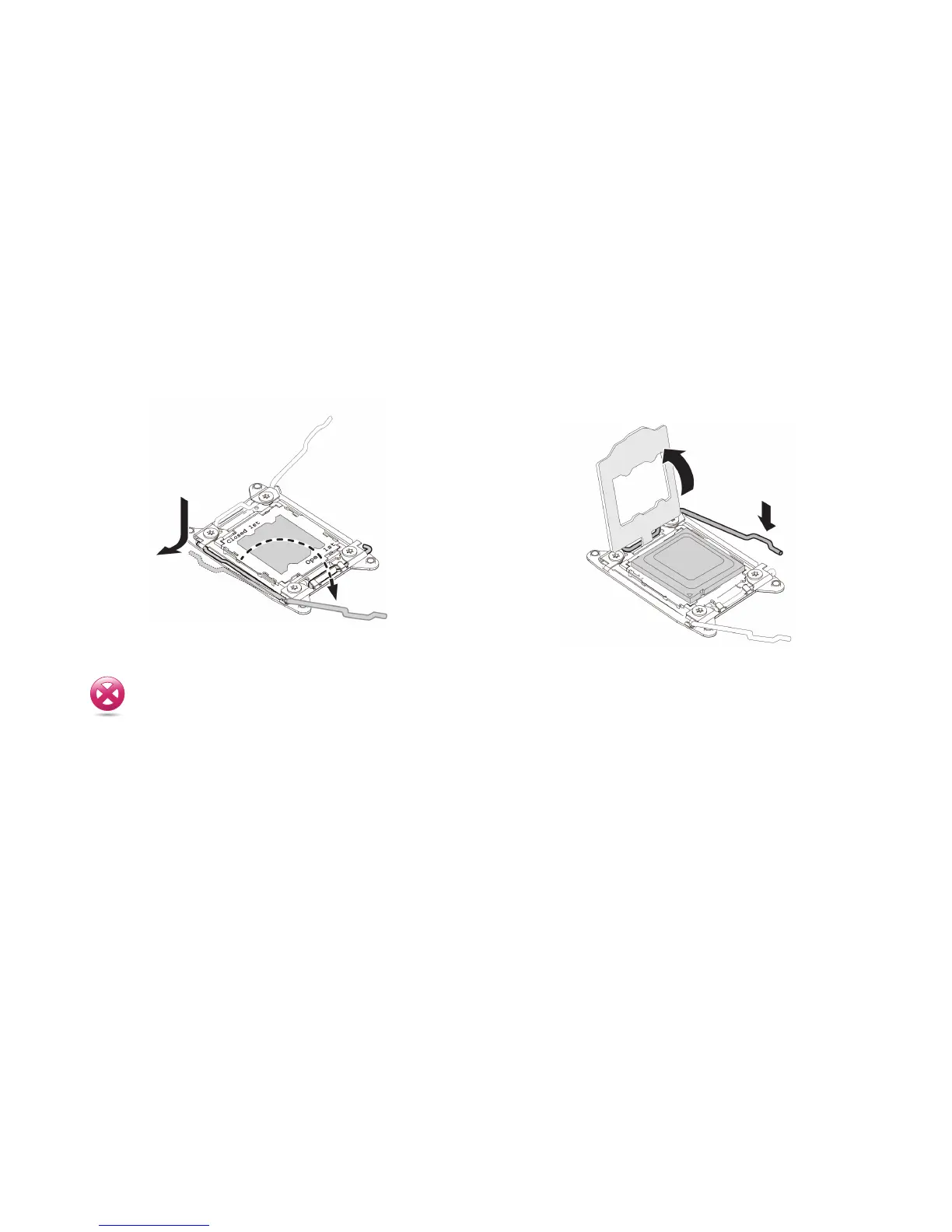

Figure 2-21. Releasing the Left Processor Locking Lever
3. Press down on the right processor locking lever to lift the
processor cover part way and then lift the processor load
plate to the fully open position.
Figure 2-22. Opening the Processor Cover
4. Lift the processor out of the socket.
CAUTION!
THE LOCKING LEVER IS HELD UNDER CONSIDERABLE FORCE AND
MAY SPRING UP UNEXPECTEDLY.
