QUANTA STRATOS S210 Series S210-X22RQ User Manual

INSTALLING HARDWARE TOP COVER
2-8
2.4 Top Cover
Removing the Top Cover
1. Turn off the system and any attached peripherals.
2. Unplug the AC power cables and disconnect all peripher-
als, LAN lines and any other cables.
3. Remove one (1) screw from the top cover.
4. Press the top cover release button and slide the top cover
off the chassis (Figure 2-12).
5. Lift the top cover off the chassis.

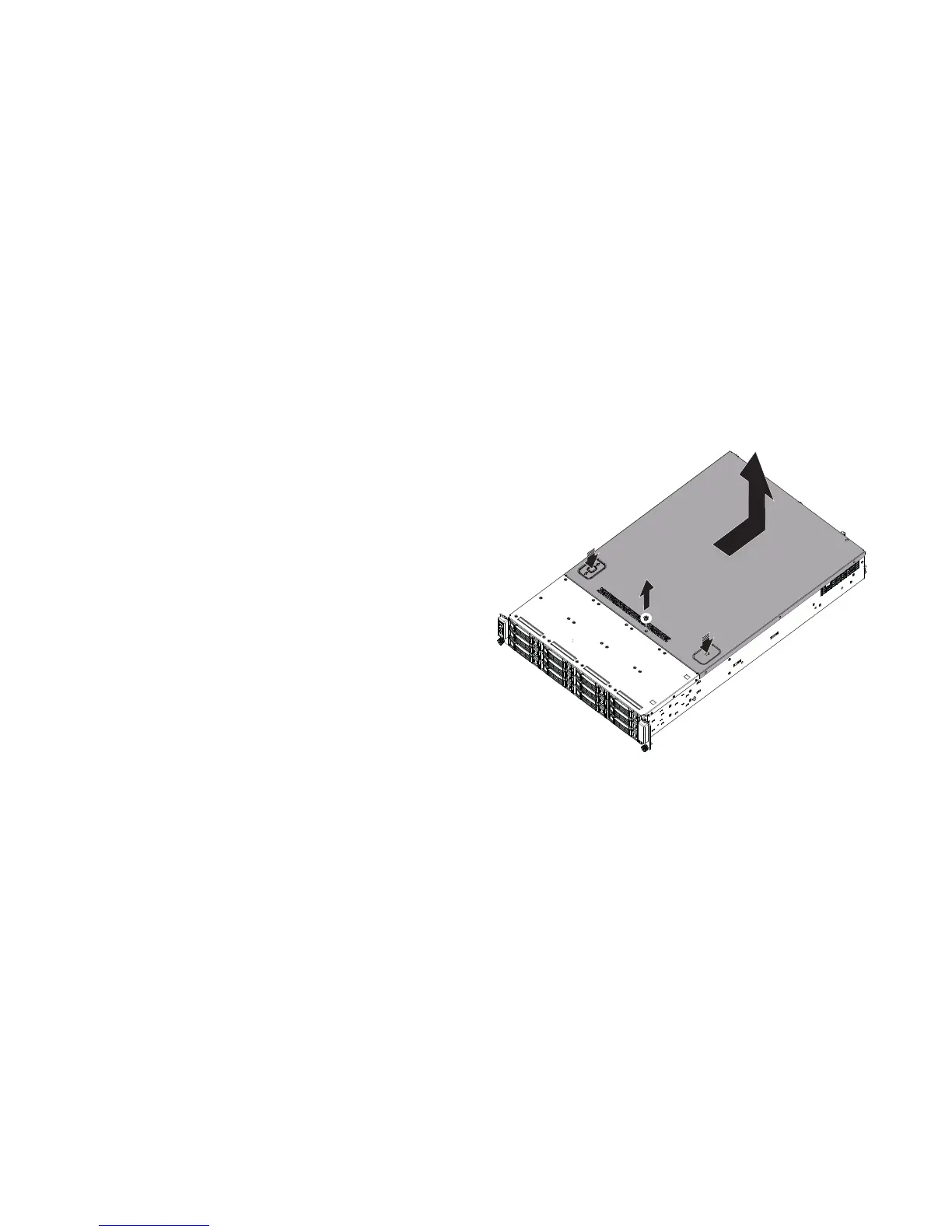

Figure 2-12. Removing the Top Cover
3
4
5
