QUICKIE ELECTRONICS SECTION
Flying Lead Replacement
Remove the Joystick from the Joystick Mount1.
Remove the four T 10 torx screws from the bottom 2.
case of the Joystick (fi g 2.7.1)
Remove the bottom case3.
Remove the strain relief from the bottom case4.
Release the retaining clip on four pin connector 5.
and pull from the circuit board
Plug the four pin connector of the New Flying lead 6.
into the circuit board
Insert the strain relief into the bottom case7.
Install the four T 10 torx screws 8.

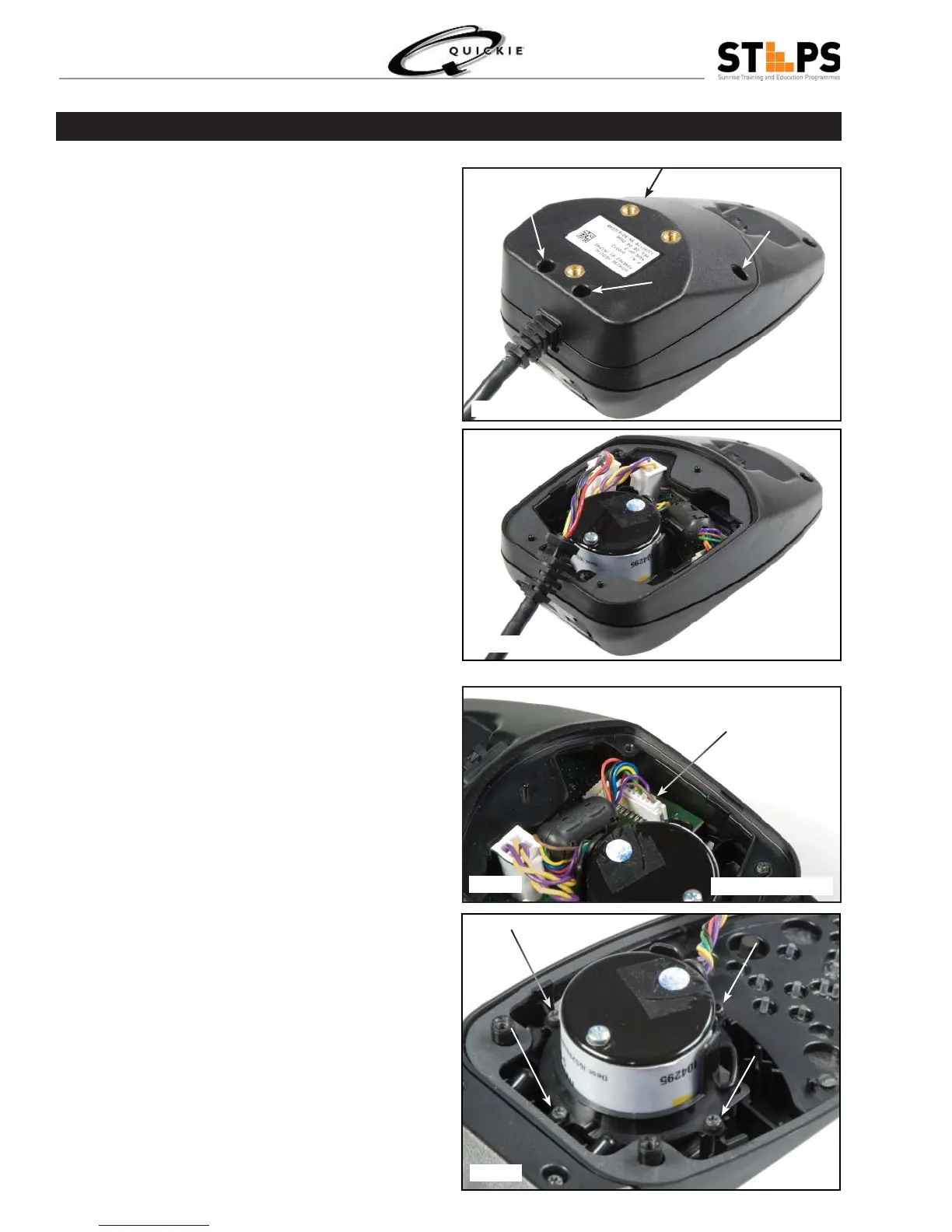

Fig 2.7.1
Fig 2.7.2
Joystick Mechanism and/or Joystick Boot
Replacement
Remove the Joystick from the Joystick Mount1.
Remove the four T 10 torx screws from the bottom 2.
case of the Joystick (fi g 2.7.1)
Remove the bottom case3.
Remove the eight pin connector by pulling from 4.
the circuit board (fi g 2.8.1)
Remove the four T 10 torx screws securing the 5.
joystick mechanism retaining ring (fi g 8.2.2)
Remove the joystick mechanism6.
Remove the boot by pulling the knob off the joy-7.
stick mechanism and sliding the boot off
Install the boot, knob and retaining ring on the new 8.
joystick mechanism
Install the four T 10 torx screws that secure the 9.
retaining ring to the joystick housing.
Plug the eight pin connector of the joystick mecha-10.
nism into the circuit board
Insert the strain relief into the bottom cover11.
Install the four T 10 torx screws that secure the 12.
bottom case
Fig 2.8.2
Fig 2.8.1
Hand Control Parts Replacement
Note: QR3/QR7 shown
Note: QR3/QR7 shown
