QUICKIE ELECTRONICS SECTION
Wiring
Before making any connections to the Hand •
Control, disable the Wheelchair by disconnecting
the Batteries and/or elevating the drive wheels.
Use only Sunrise Medical approved wiring •
Harnesses to connect the Hand Control.
Wiring should be suitably restrained and fastened •
to the wheelchair to prevent snagging and to
ensure that there is no strain on connectors.
Take particular care when routing and securing •
cables on moveablestructures, such as Tilt, Lift
and Recline etc. Such moving structures have
the potential to crush and shear wiring, causing
potential electrical issues.
To maintain EMC compliance, ensure that •
wires are routed as per Sunrise Medical
recommendations.
Note: bottom 2 pins 3&4 can be used to measure bat-
tery voltage.

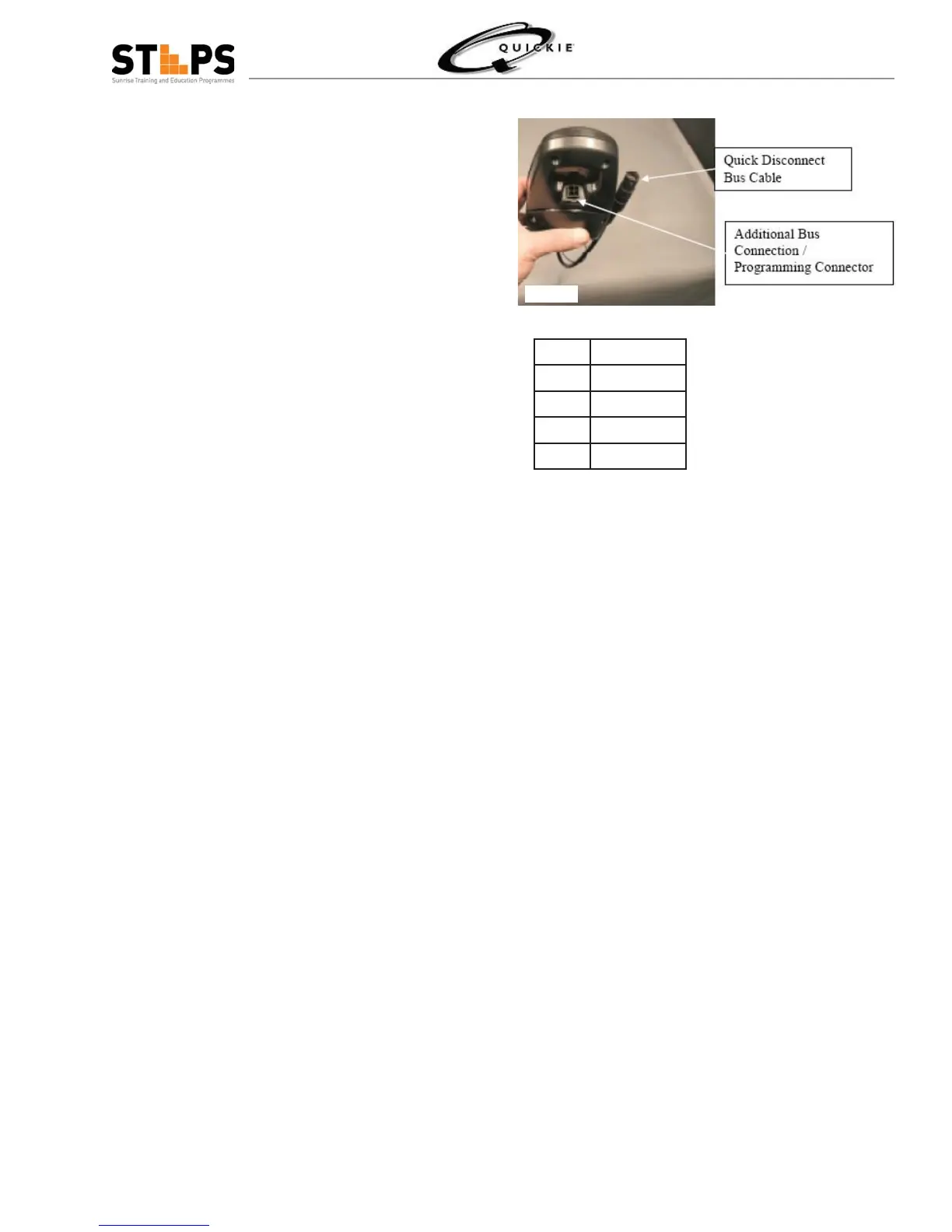

Can Bus Pin Outs
Pin Defi nition
1 CAN Hi
2 CAN Lo
3 +24V
4 Ground
