QUICKIE ELECTRONICS SECTION

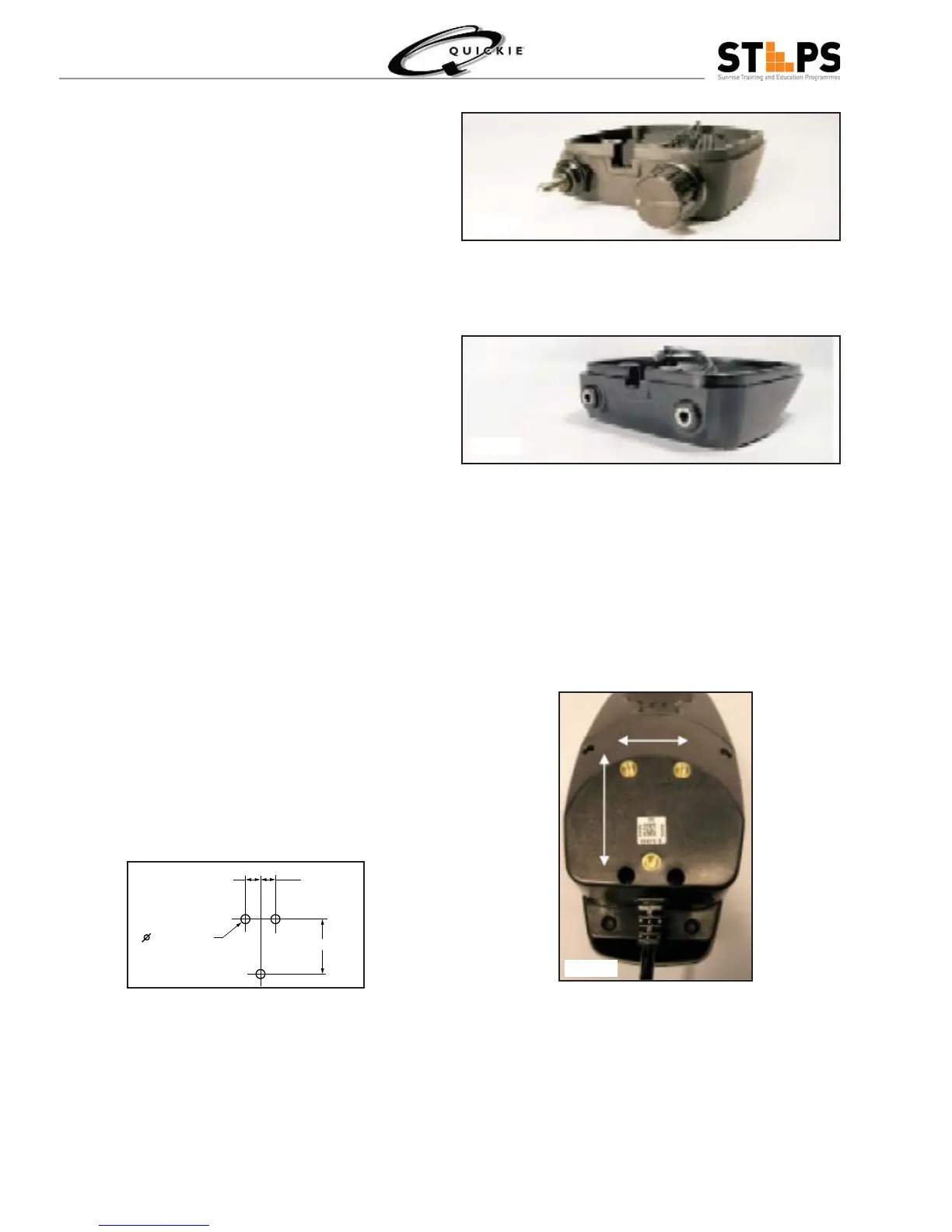

Mounting
QR Hand Controls can be mounted on either •
side of the Wheelchair to accommodate Left
Handed and Right Handed Users.
QR Hand Controls must be mounted using 3 M5 •
x 14 button head screws.
12.00
12.00
42.00
6.00
+
-
0.25
Fig 2.11.1
Fig 2.11.2
Heels are exchangeable by removing the 4 Torx screws
and separating the heel from the main body of the hand
control. Disconnect the cable from the heel to the main
body of the control (where applicable), and ensure that
the Main Bus cable is detached from the heel. Take the
new heel and perform the reverse operation to fi t it to
the main body of the Hand Control.
Wrist Rests are removed by loosening the two Torx
screws in the base of the Rest, splitting the Rest into 2
halves and removing a further 2 Torx screws that hold
the Rest to the main body of the Hand control. To add a
Wrist Rest, perform the reverse operation.
Speed Potentiometer and On / Off
Switch Heel
SUNRISE PART # 020041
Jack Socket Heel (2 eighth inch Jacks)
SUNRISE PART # 020042
Additional Hand Control Heels and add-ons
Fig 2.10.1
Fig 2.10.2
