3. Release lever
7. Receiver
9. Receiver adjustment bolts

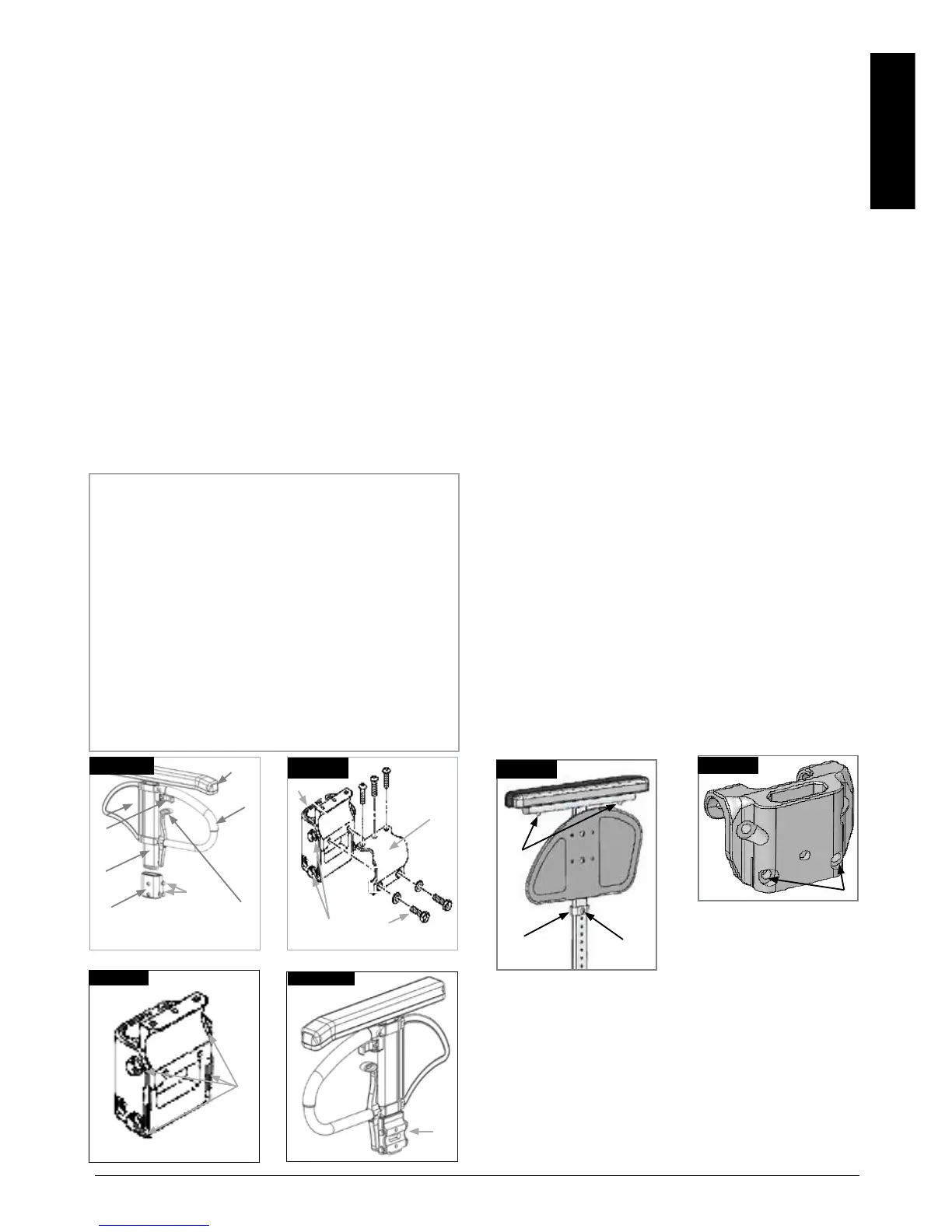

Armrest Receiver Attachment
(Fig.4.25-4.28).
Adjusting Armrest Receiver Fit
To tighten or loosen the fit of the outer armpost in the
receiver:
1. Loosen the four receiver adjustment bolts (9) on the
sides of the receiver.
2. With the armrest in the receiver (7), squeeze the
receiver to achieve the desired fit.
3. Tighten the four bolts (9). (144 in-lbs, 16.3 Nm)
Position Adjustment
1. Loosen the two clamp bolts (10) until clamp is loose.
2. Slide armrest receiver to desired position.
3. Tighten
1
3
6
2
5
9
7
4
Fig. 4.25
10
7
8
9
Fig. 4.26
9
10
9
Fig. 4.27
Fig.4.28
7
Installation: Slide the arm post into the receiver, located
on the wheelchair frame, until it stops
Slide the arm rest post out of the receiver.
Adjust the position of the hight adjustment bracket (1) by
removing the screw (2) and moving it to the desired
posiion. Re-fit the screw and tighten it.
Slide the arm rest post back into the receiver, (Fig.4.28.1).
The armpad position can be adjusted by relesing the
screws (3), then moving the arm pad to the desired
position. Re-tighten the screws, (Fig.4.28.1).
The tightness of the armrest receiver can be adjusted
(tightened /loosened) by means of the 2 screws (1) -
(Fig.4.28.2).
1
2
3
1
