QuickLabel Kiaro! 200 - Position Tab

Designing and Printing Labels
Kiaro! 200 User Guide 47

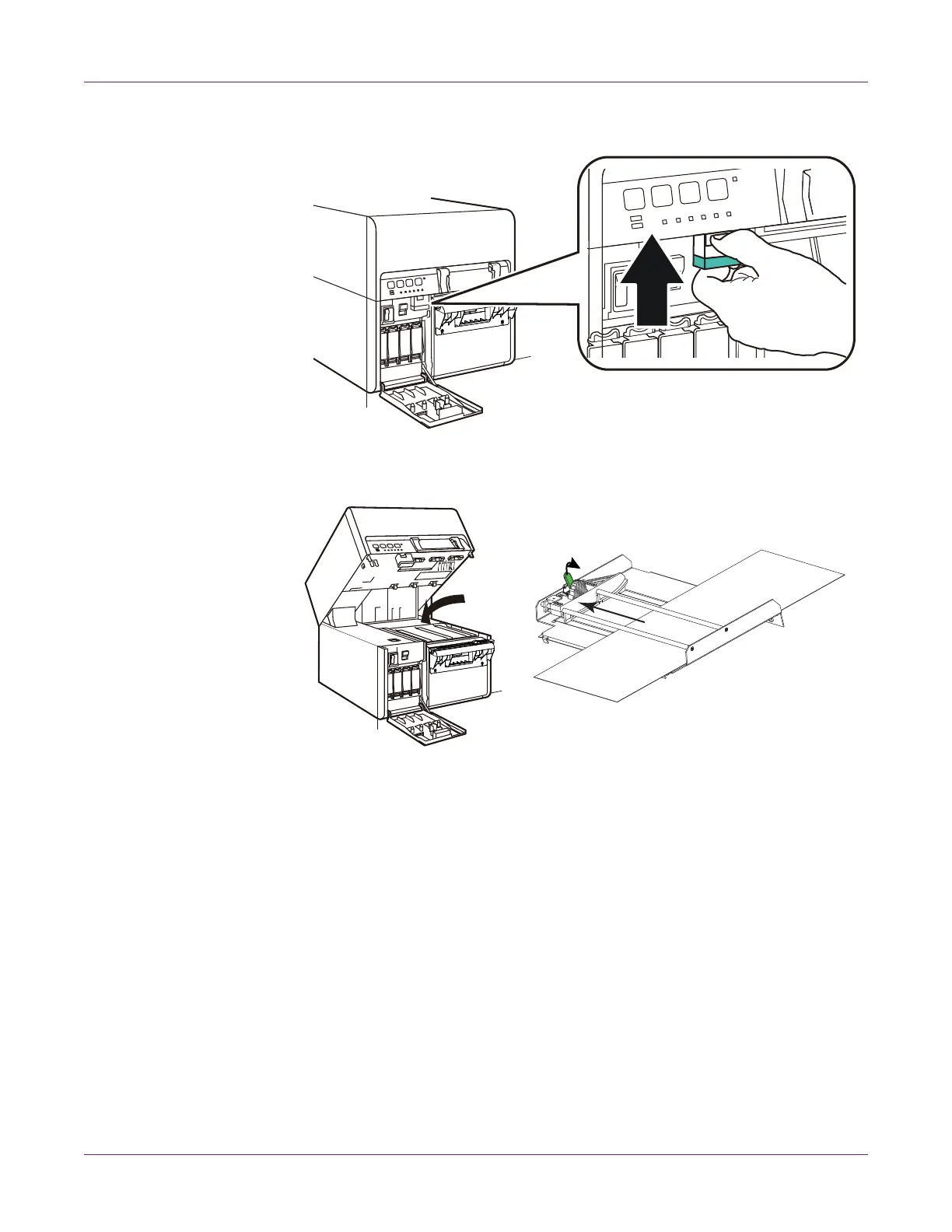

3 Push the upper unit release lever up to open the upper unit.
4 Adjust the input guide inside the upper unit. Press the green lever and slide the
guide fully away from the media. Then release the green lever.
5 Pull the media out from the entry slot on the rear of the printer.
