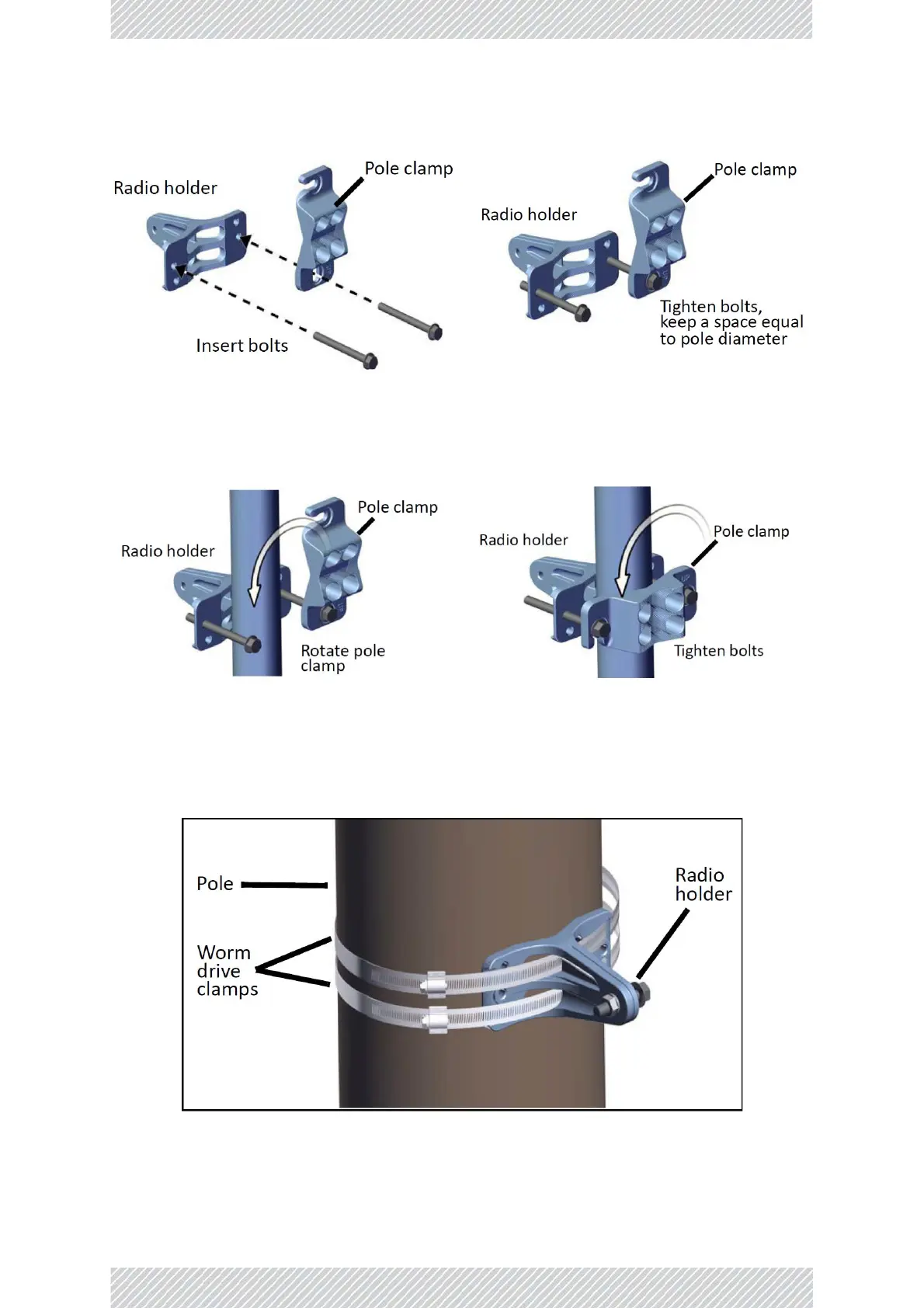

Figure 39: Connect Pole Clamp to Radio
Figure 40: Tighten bolts
2. Place this assembly on the pole where you want to mount the device. Once it is in place, rotate the pole
clamp as shown, then ghten both bolts.
Figure 41: Rotate Clamp
Figure 42: Completely ghten bolts

1. Diameter larger than 3” (7.5cm) : Use worm drive clamps (not supplied), threaded through the holes as
shown:
Figure 43: Mounng kit on a thick pole
