RADWIN 5000 Installaon Guide

August 2023

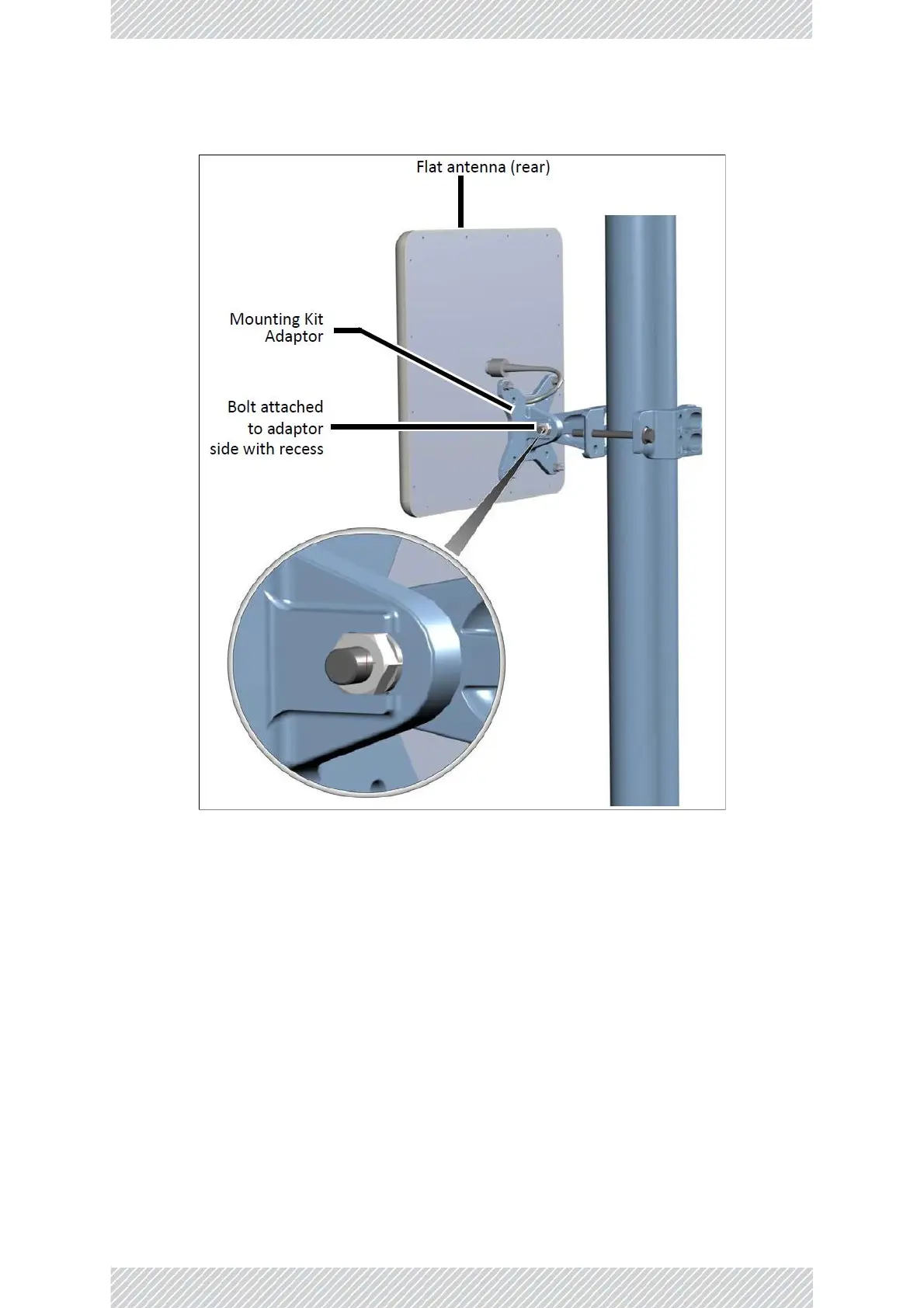

Figure 66: Flat Panel antenna ‐ mounted on a pole

2.9 Mounng the SU Connectorized

The SU Connectorized is mounted on a pole using worm‐drive clamps.

1. Place the unit on a pole.
