RADWIN 5000 Installaon Guide

August 2023

2.12 Ground Radio Unit

Connect a ground cable to the indicated ground connecon on the radio unit as shown in the secons

below:

2.12.1 LFF Units

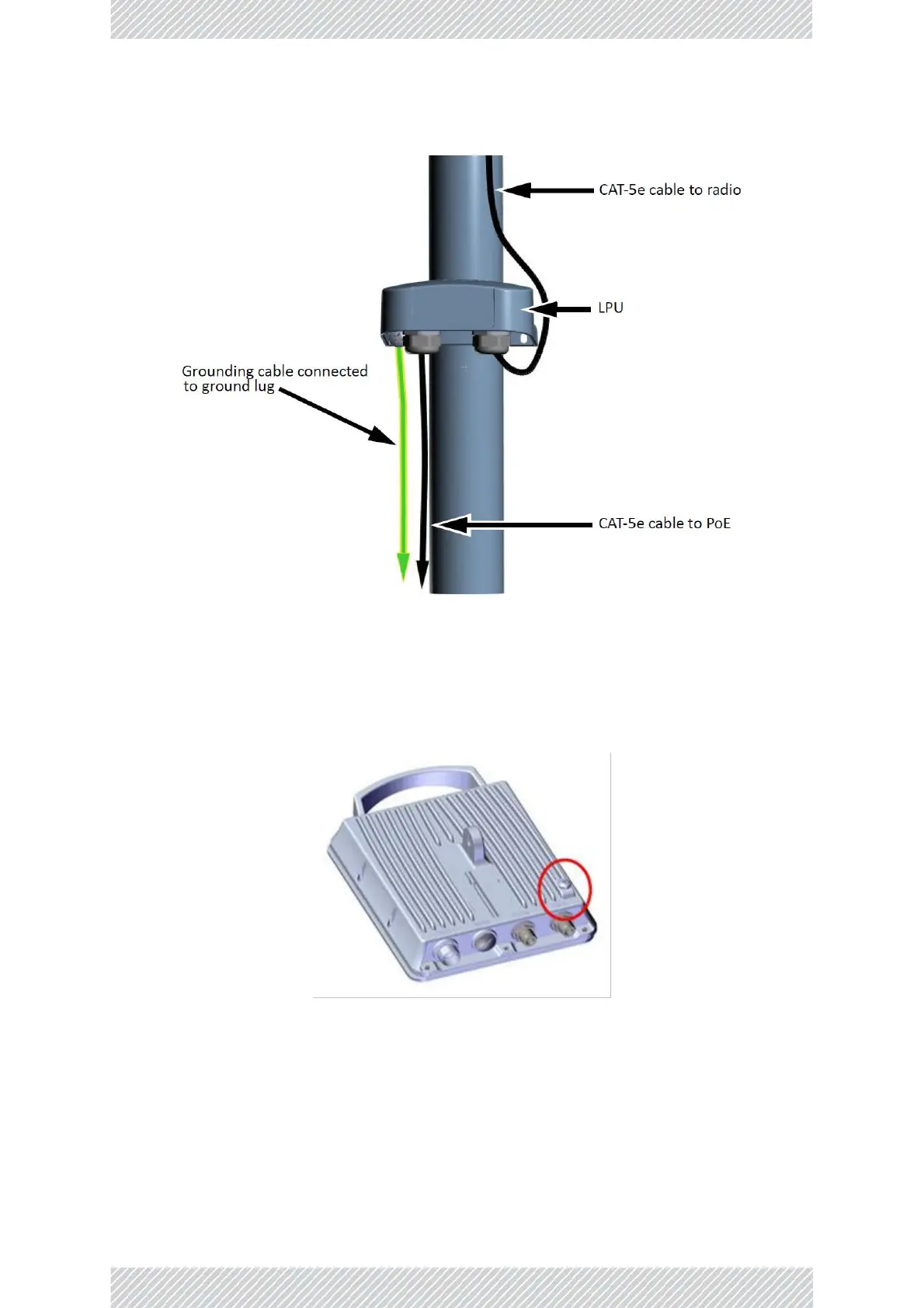

Figure 68: Ground: LFF radio unit
