Radwin 5000 Installation Guide

RADWIN 5000 Installaon Guide
August 2023
30
The pole clamp is not needed.

The radio vercal adaptor is needed when mounng a JET or DUO radio unit on a vercal pole (see Figure
56: JET radio unit mounted on a horizontal pole on page 45 and Figure 57: DUO radio unit mounted on a
horizontal pole on page 45). Use the radio vercal adaptor as shown:

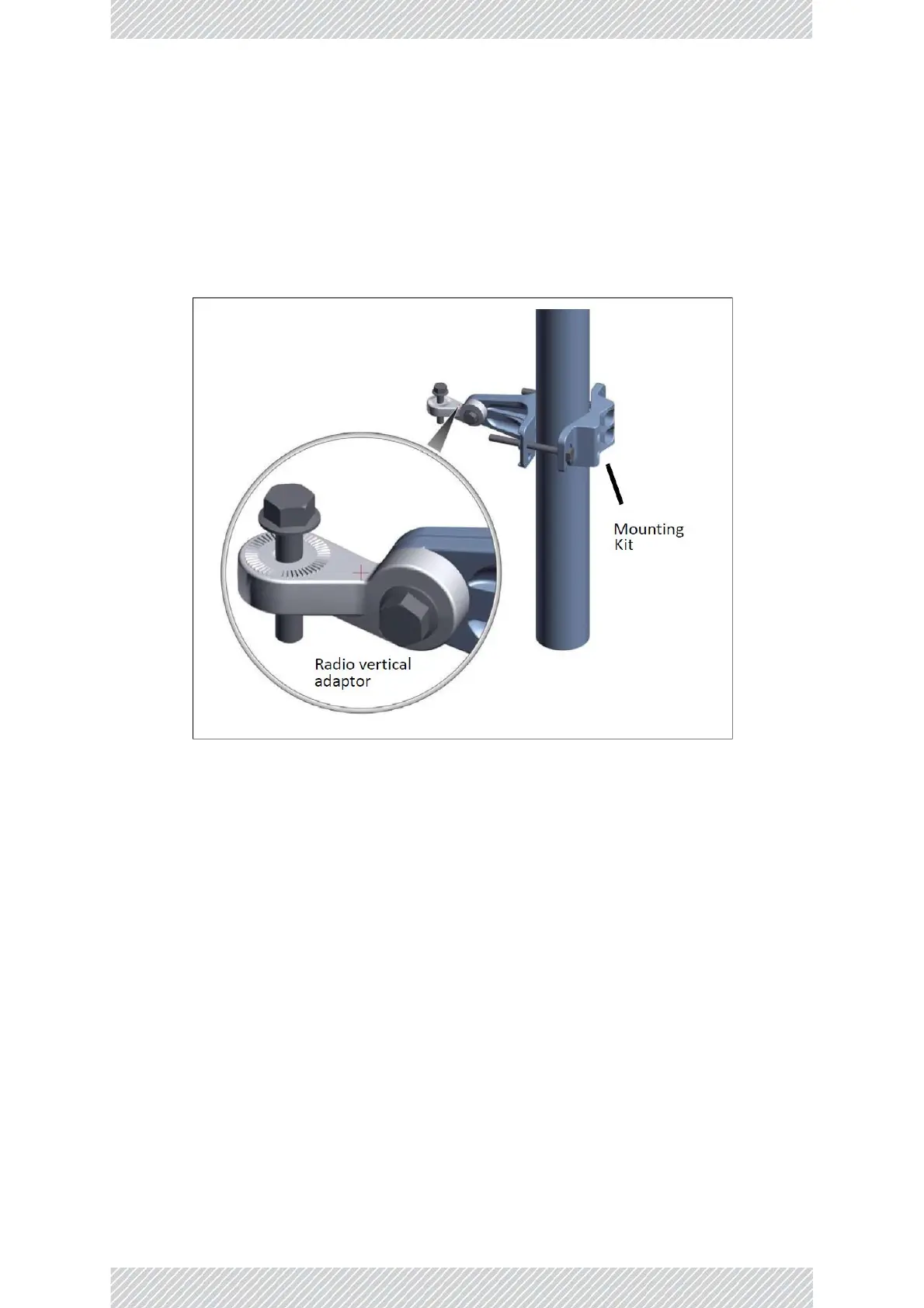

Figure 44: Using the radio vercal adaptor on a vercal pole
2.5.3 Horizontal Pole
Installing the mounng kit on a horizontal pole is done in a similar manner to that on a vercal pole (thin,
medium, or thick sizes):

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
