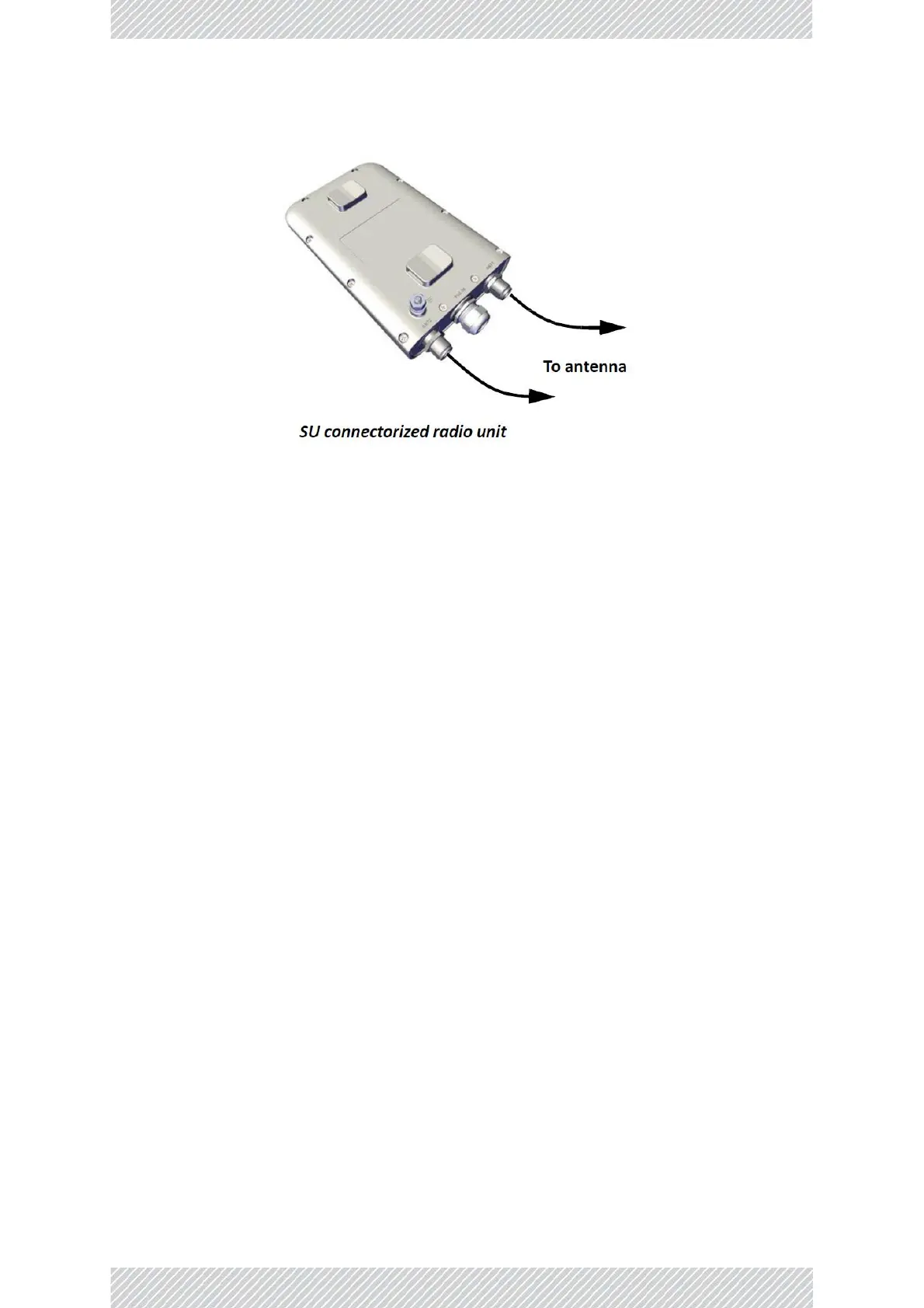

Mount the SU Connectorized radio unit using worm drive clamps (See Mounng the SU Connectorized on
page 50).
For all of these radio units, It does not maer if the V or H connecon of the antenna is connected to either
the ANT 1 or ANT 2 connecon of the radio, but what is important is that you preserve the same connecon
scheme throughout the sector (eg: V is always connected to ANT 1, H is always connected to ANT 2).
2.13.2 Connecting SU PRO/AIR EMB Units to Antennas

Fasten the Turbo Gain antenna on the SU PRO/AIR EMB unit using these steps::
1. Connect the cables to the radio (use a 5/16 wrench with 0.9 N‐m torque)
2. Seal the cables (See Waterproong on page 80)
3. Connect the Turbo Gain antenna
4. Close the screws of the Turbo Gain antenna
5. Seal the connectors on the Turbo Gain antenna using the sealing tape.
