RADWIN 5000 Installaon Guide
August 2023
32

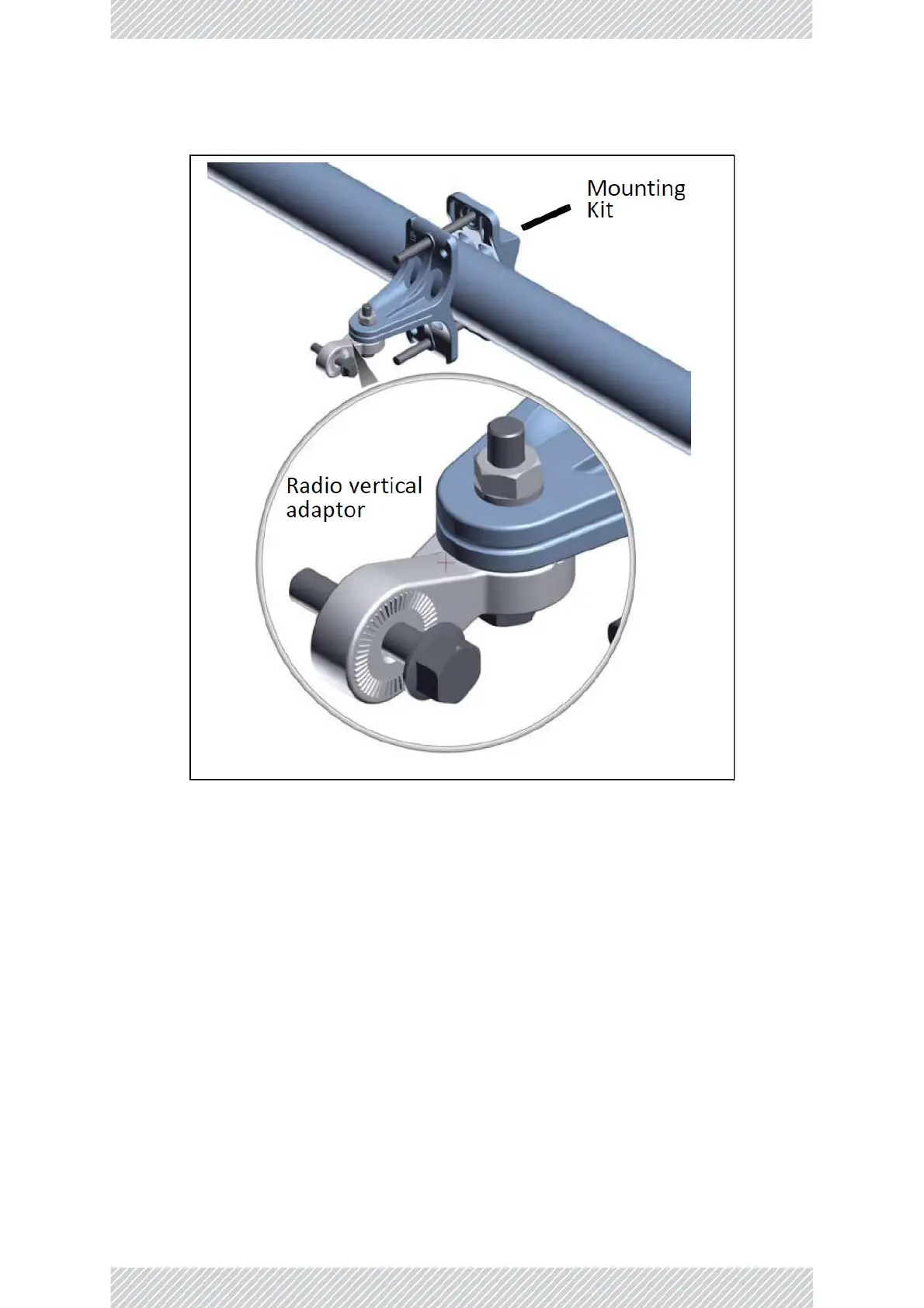

Figure 46: Using the radio vercal adaptor on a horizontal pole
When mounng a JET or DUO radio unit on a horizontal pole, the vercal adaptor is not needed (see Figure
56: JET radio unit mounted on a horizontal pole, on page 45 and Figure 57: DUO radio unit mounted on a
horizontal pole, on page 45).
2.5.4 Wall
Use two mounng screws (not included) appropriate for the type of wall to install the mounng kit on a
wall. Make sure you use the indicated holes.
The pole clamp is not needed.
