RADWIN 5000 Installaon Guide

August 2023

2. Fasten the unit to the pole using worm‐drive clamps.

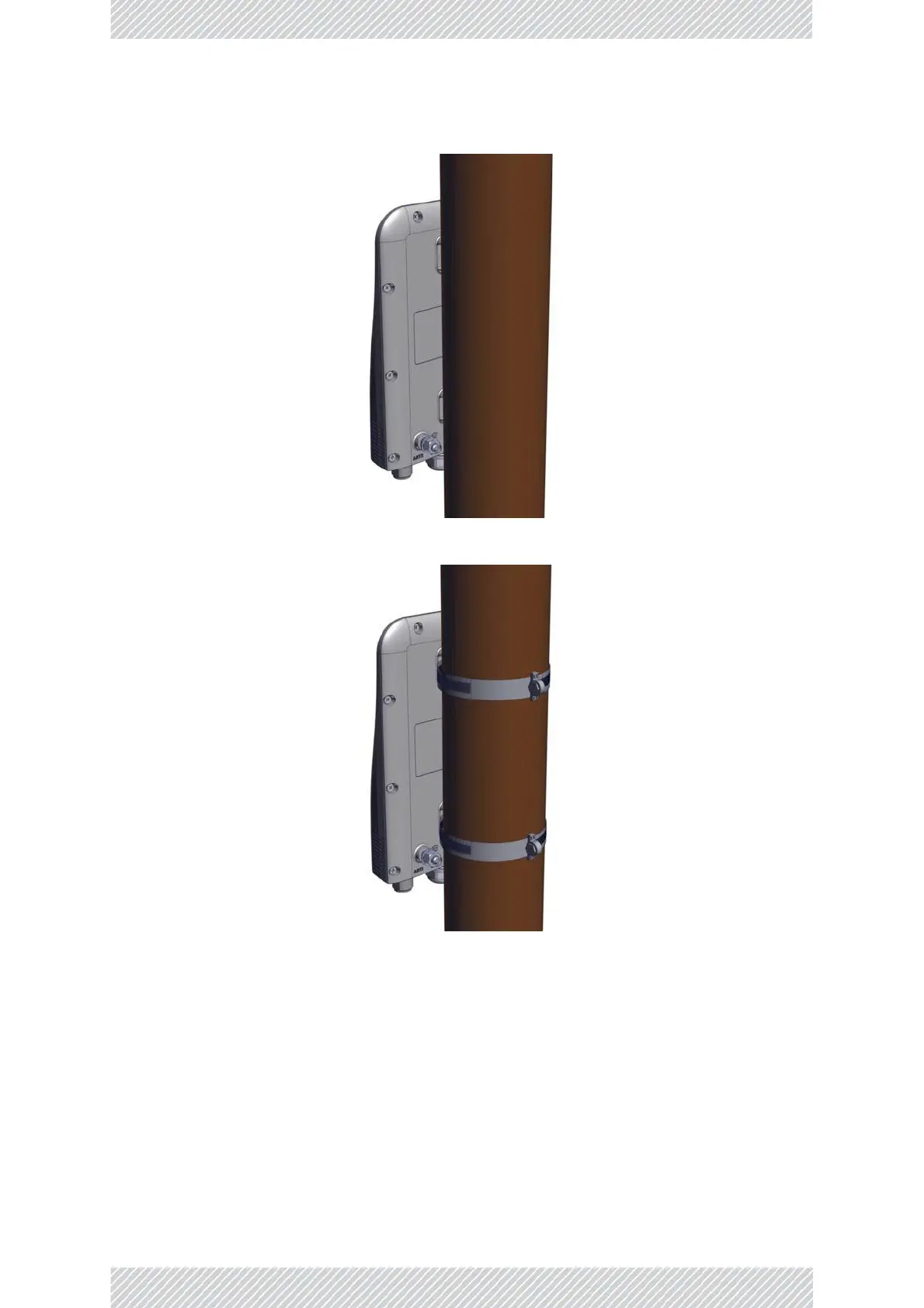

Figure 67: SU Connectorized mounted with worm drive clamps

2.10 Mounng the SU PRO/AIR EMB

1. Open the clamp (for radio unit):
