RADWIN 5000 Installaon Guide
August 2023
60

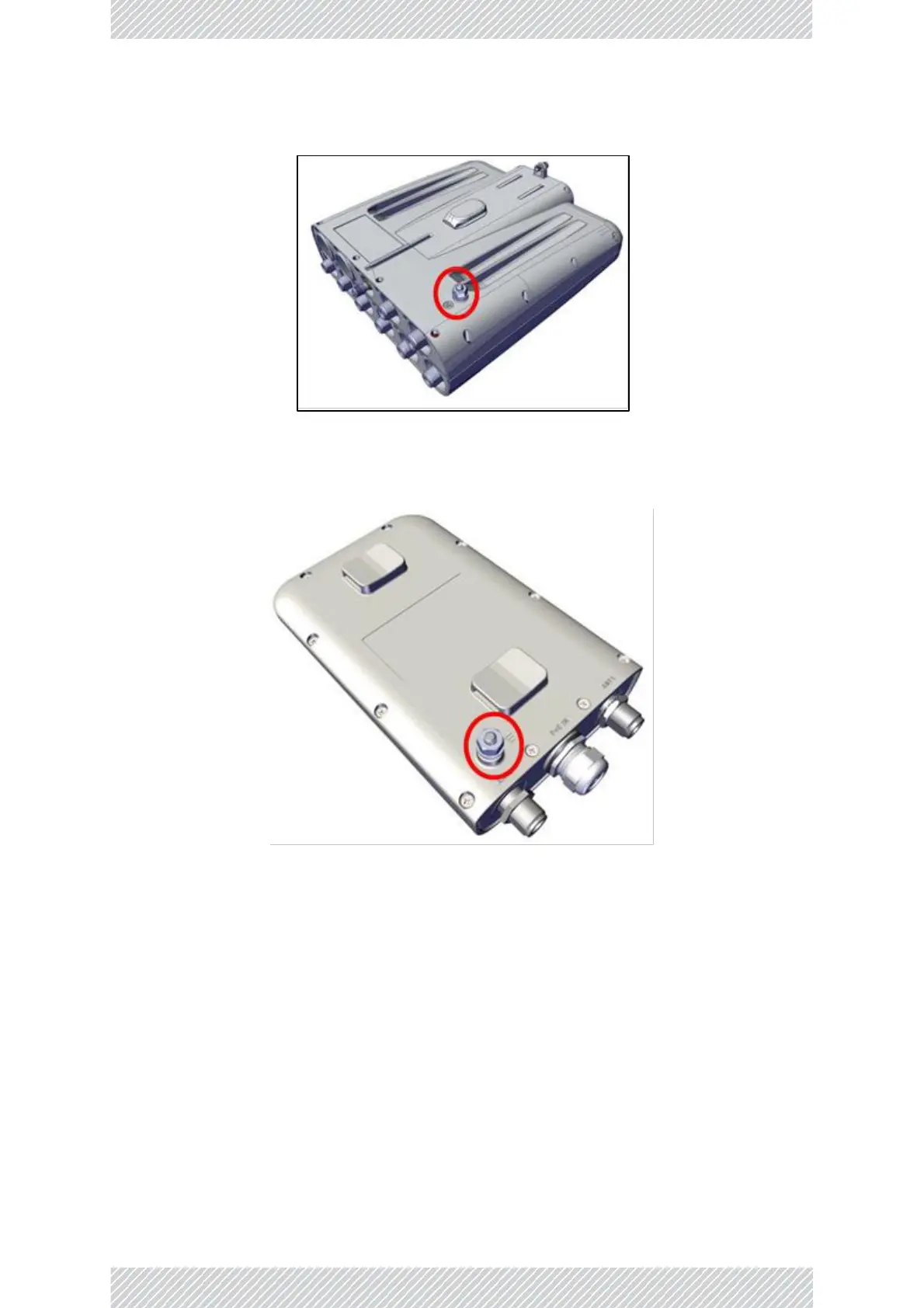

Figure 75: Ground: MulSector Connectorized unit
2.12.9 SU Connectorized Units
Figure 76: Ground: SU Connectorized unit
2.12.10 SU PRO/AIR EMB Units
Since the SU PRO/AIR EMB is grounded via its mounng kit, the mounng kit must be grounded before a
radio is aached to it.
