RADWIN 5000 Installaon Guide
August 2023
68

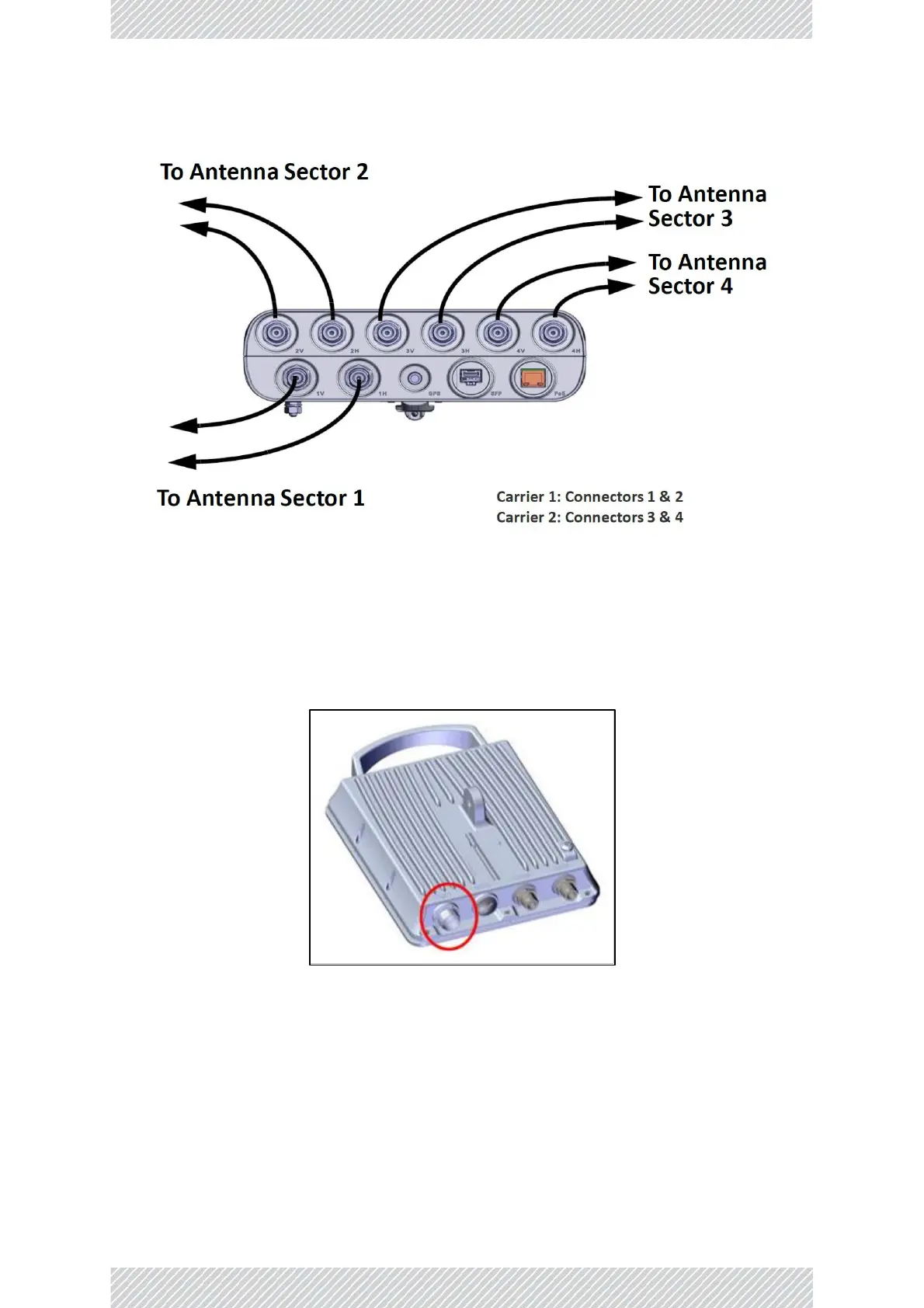

Figure 84: Antenna connecon scheme for the MulSector Connectorized unit
2.14 Connect Radio (External Connecons)
2.14.1 LFF, SFF, SU Integrated, and JET Units
1. Connect a CAT‐5e cable to the input port of the radio as shown:
Figure 85: Input port: LFF unit (connecon label: “IDU”)
