RADWIN 5000 Installaon Guide
August 2023
49

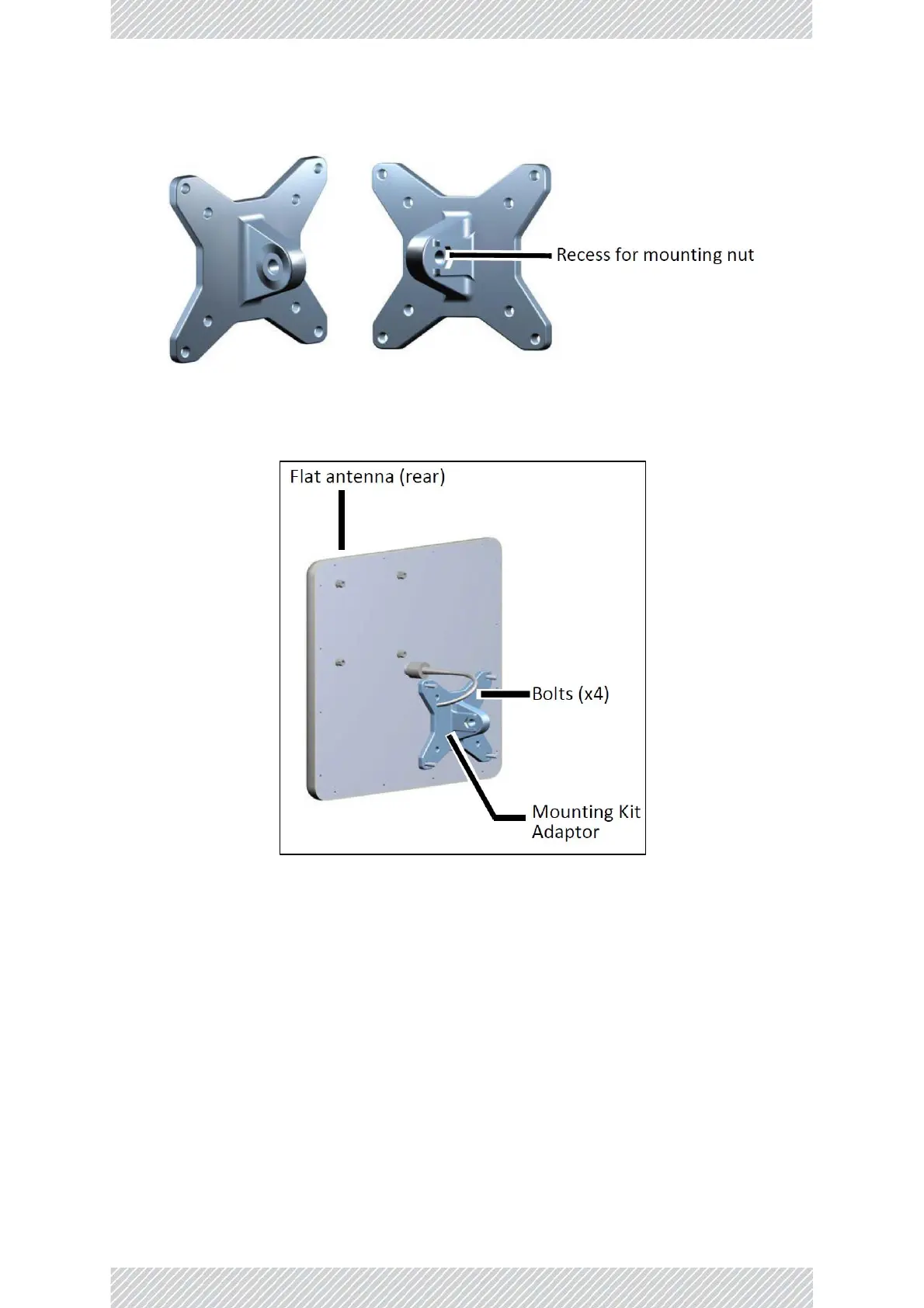

Figure 64: Flat panel antenna mounng kit adapter
Aach the mounng kit adaptor to the rear of the external antenna as shown:
Figure 65: Flat Panel antenna ‐ rear with mounng kit adapter
Mount the antenna with the adaptor to a vercal or horizontal pole (as shown in Figure 40 to Figure 41).
Figure 51 shows a mounted antenna. Aach the mounng bolt to the side of the adaptor with the recess, as
shown.

Radwin 5000 Specifications

General

Channel Bandwidth	5 MHz, 10 MHz, 20 MHz, 40 MHz
Encryption	AES
Product Type	Point-to-Point
Interface	Ethernet
Frequency Bands	5.1 GHz, 5.4 GHz, 5.8 GHz
Modulation	Adaptive Modulation (QPSK to 256QAM)
