Gas
Edition 10-2008a

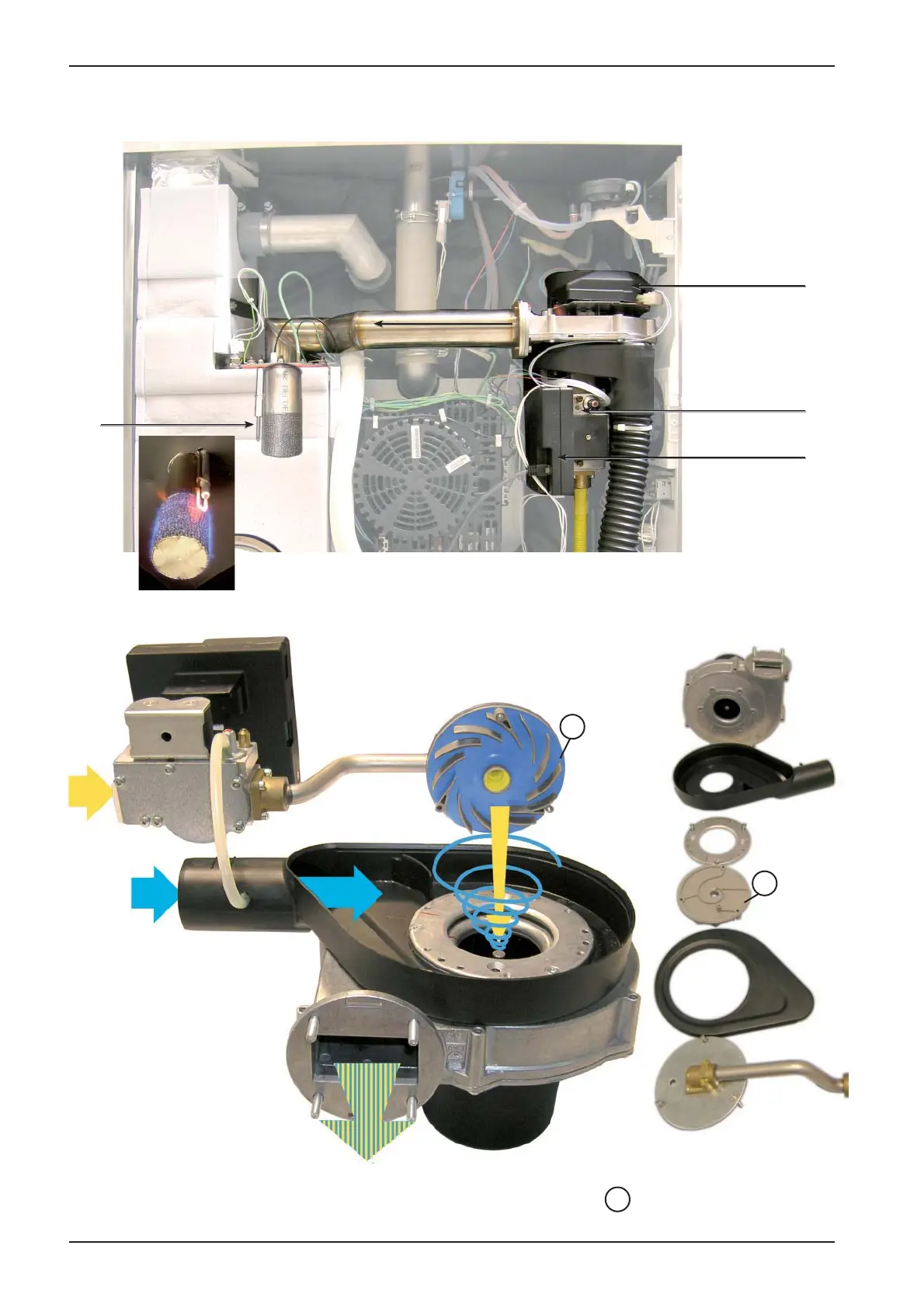

Gas burner principle
Burner blower
Gas-Air mixture
Ignition and
monitoring electrode
Gas valve
Ignition box
Gas
Air
Mixing of gas and combustion air
Mixing of gas and combustion air (shown: gas valve -blower combination 202 steam)
The pulled-in air is brought into rotation in the stationary Whirlwind-disc 1 and completely mixed
with the incoming gas.
