Rational SCC Series

114
Gas
Edition 10-2008a

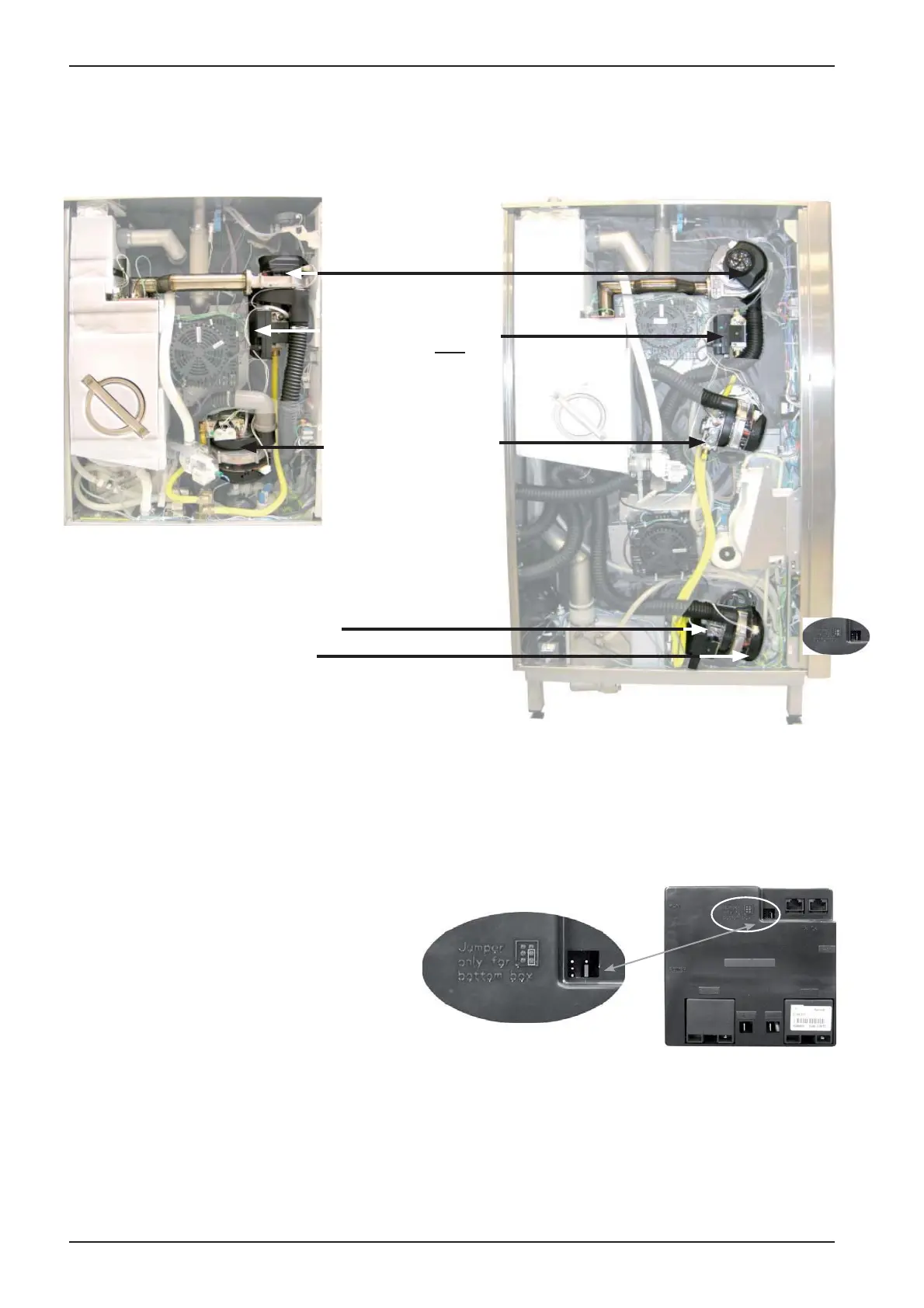

Identification of gas burners / Gas blowers:
Unit 61 - 62 - 101 - 102 Unit 201 - 202
Steam Blower
Steam Gas valve
with common ignition
box for Steam and
Hot Air (top)  tted
Blower and gas valve
Hot Air blower (top)
Ignition box hot air burner (bottom) (201-202):
Jumper is only set on Ignition boxes for
hot air burner bottom (201-202):
Gas valve hot air (bottom) with second ignition box;
Jumper must be set!
Blower hot air burner (bottom)
