Edition 10-2008

Function Step Responsible sensor

1. Select Steam mode

2. Select time or core temperature

3. Close cabinet door Reed switch S3

4. Check water level inside steam generator Level electrode S2 inside Steam Generatorr

5. Time based preheating of steam generator, Thermocouple B5 inside Steam Generator

if B5 is below 85°C (185°F);

6. Timer starts after successful preheating Logic on PCB

(blinking dot in Display)

7. Steam supply up to steam saturation Quenching sensor B2

inside cabinet (Steam control)

8. Hot Air supply (only 50%) when set Cabinet sensor B1

temperature (100°C/212°F) can not be

reached in time by Steam alone

9. Quenching (set to 70°C/158°F) Quenching sensor B2

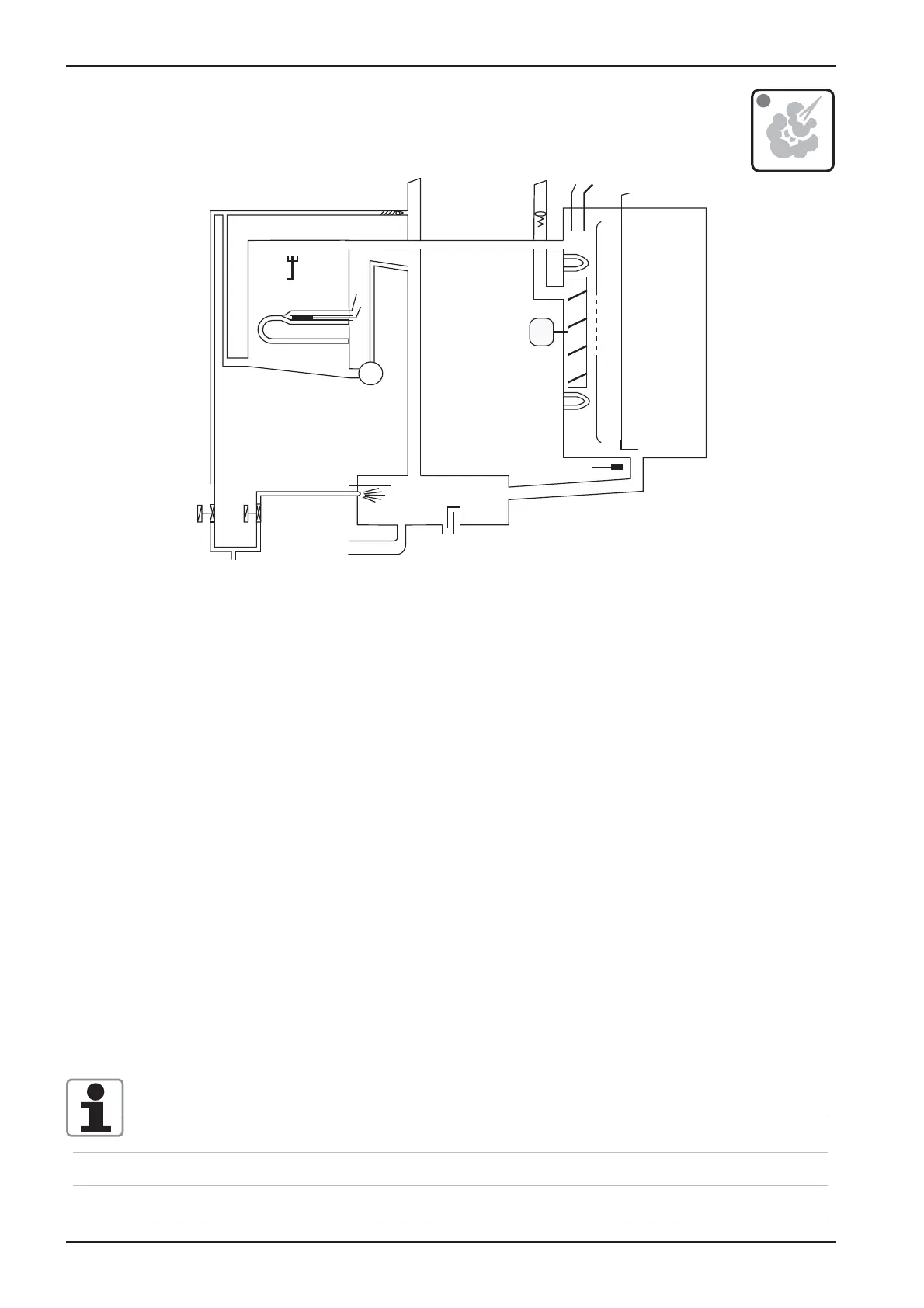

CM - Sequence of events

Mode: Steam 100°C (212°F), Temp. preset, not adjustable
