B1 Thermocouple interior cabinet
B2 Thermocouple quenching
B4 Thermocouple humidity
B5 Thermocouple steam generator (preheat, 180°C (356°F) max)
B6-B11 Thermocouples core temperature
F3 Safety thermostat steam generator 160°C (320°F)
F4 Safety thermostat interior cabinet 360°C (680°F)
Y1 Solenoid valve lling
Y2 Solenoid valve quenching
Y3 Solenoid valve moistening
Y4 Solenoid valve care
M1 Fan motor bottom
M3 Humidity ap motor
M4 SC-pump
M6 CleanJet pump
M7 Motor drain valve / ball valve
M12 Care pump
S2 Level electrode
S3 Door reed switch
S4 Micro switch humidity motor
S11 CDS sensor
S12 Micro switch drain valve
P1 Pressure sensor humidity
SCC 201/202 only:
M2 Fan motor top with jumper ( oor units only)

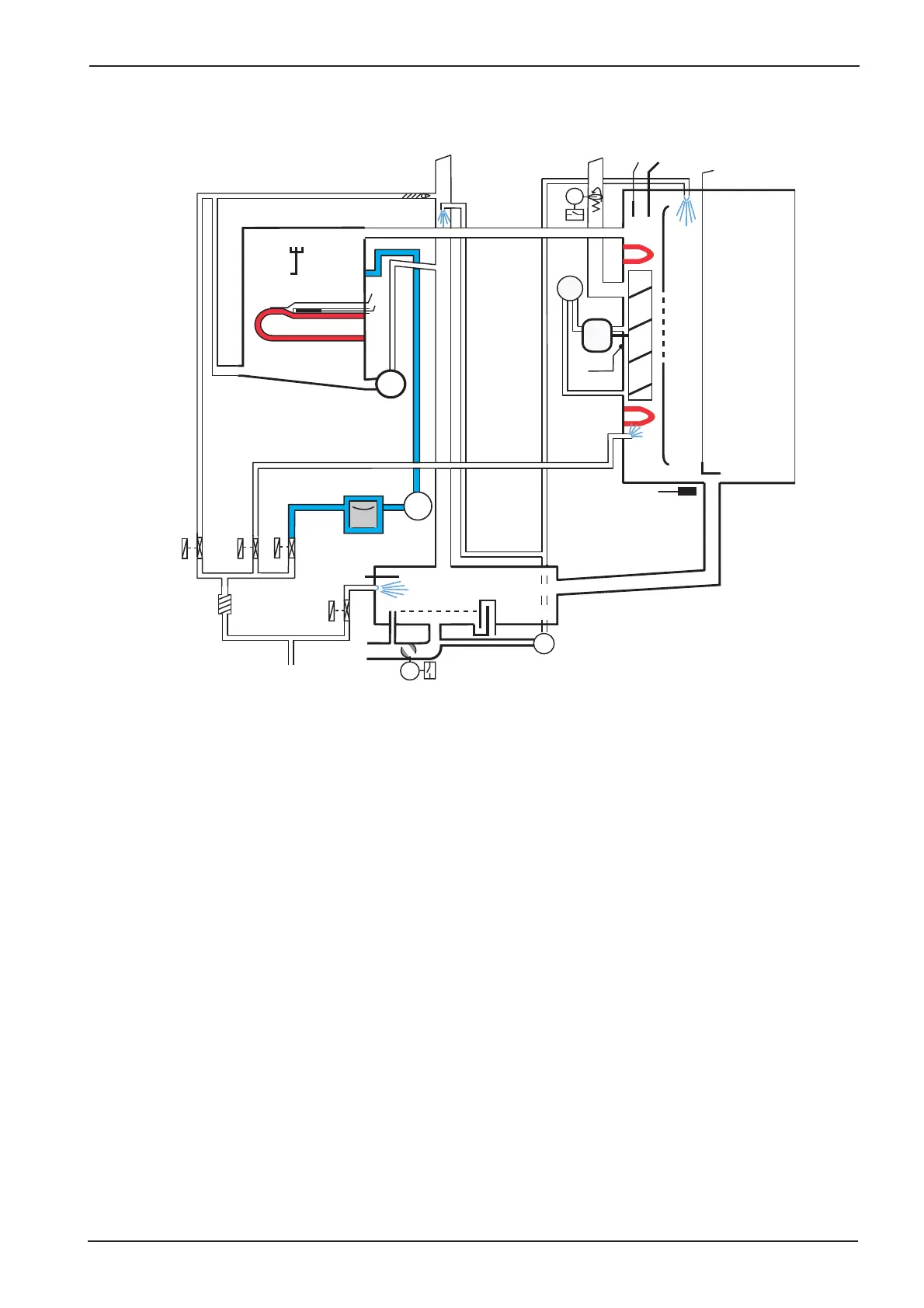

SCC Electric - Basic principle
