Edition 10-2008
CM Technique

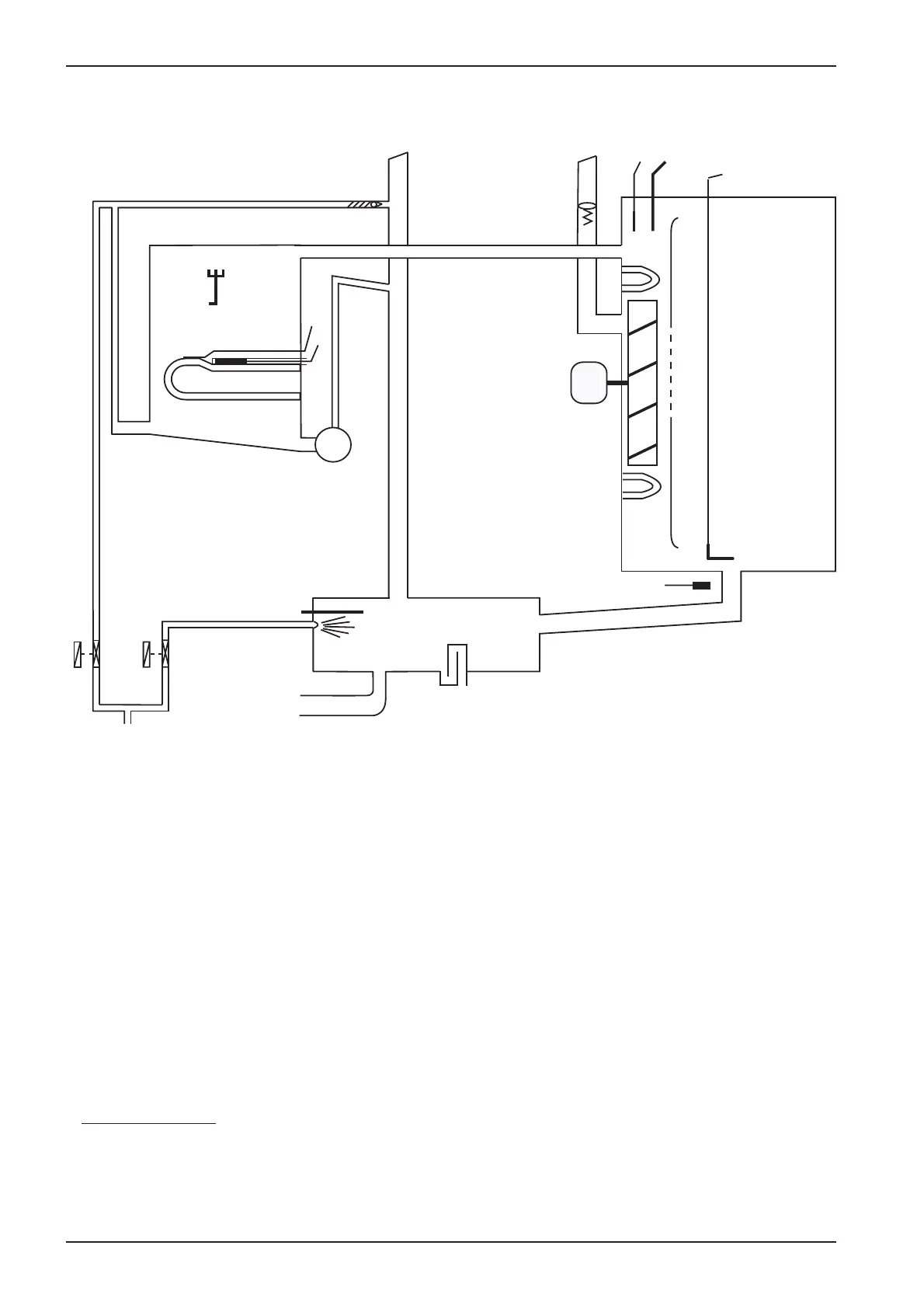

B1 Thermocouple cabinet
B2 Thermocouple quenching / Steam control
B3 Thermocouple core temperature
B5 Thermocouple steam generator (preheating, 180°C (356°F) max)
F3 Safety temperature limiter steam generator 160°C / 320°F
F4 Safety temperature limiter cabinet 360°C / 680°F
Y1 Solenoid valve lling
Y2 Solenoid valve quenching
M1 Fan motor (without jumper)
M4 Pump SC-Automatic
S2 Level electrode
S3 Door contact switch
CM 201/202 only:
M2 Fan motor top (with jumper)
B1
B3
F4
M4
Y1
Y2
B2
M1
S2
B5
F3
S3
