Rational SCC Series User Manual

54
SCC
Edition 10-2008a
LED Code: SCC PCB
Green LED on - ok
Red LED blinks 1x during re-booting when switching on - ok
Green LED off - : Bus cable defective; CPU defective; I/O pcb or transformer defective
Red LED on: CPU defective
Red LED doesn‘t blink during re-booting when switching on - CPU defective
Yellow LED blinking: No operational software / CPU defective

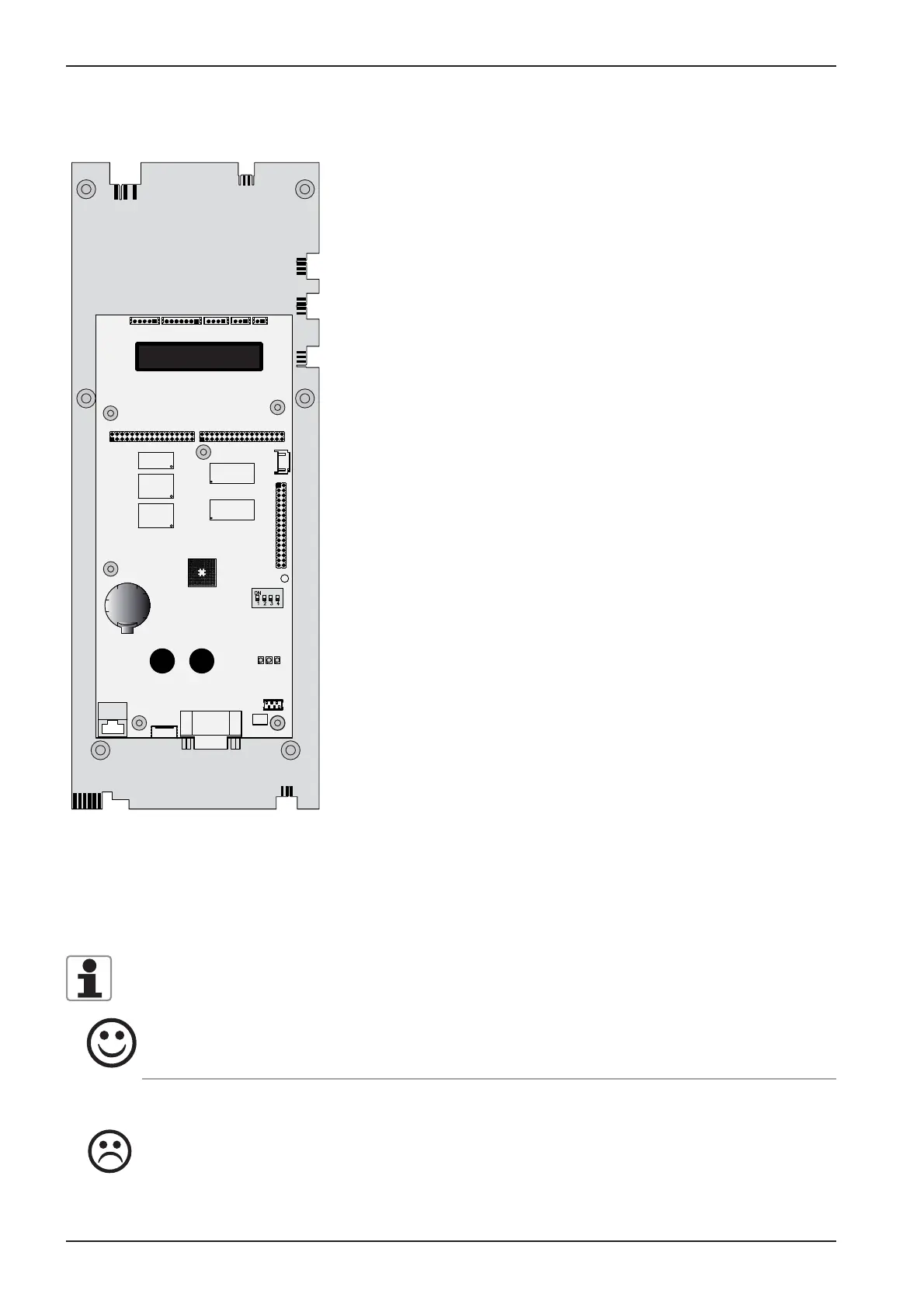

SCC pcb (42.00.002)
X12
X11
X1
X8
X7
X110
X2
42.00.002 REV 802
Operator PCB
CPU
X54
X52
X102
X10
X50
X5 X2 X6 X4 X3
V10 V9 V8
X51
X7
X8
X103
Battery
CPU
Add on X2 B6-11 thermocouple core probe
Add on X3 B1 thermocouple interior cabinet
Add on X4 B2 thermocouple quenching
Add on X5 B4 thermocouple ClimaPlus
Add on X6 B5 thermocouple Steam generator
Add on X10 Central dial
Add on X50 External EEPROM
Add on X51 BUS interface
and power supply for cpu from I/O pcb
Add on X52 RS232 interface
Add on X53 USB interface (up to 12-2005)
Add on X54 USB intefarce
Add on X102 TouchPad connection
X1 P1 pressure sensor
X2 Free
X7 200 - 240V input to I/0 Switch
X8 Buzzer
X11 ClimaPlus motor / Micro switch
X12 Level electrode
X110 Power suply for display 2,5 - 0 - 2,5
A3 Add on pcb
