Rational SCC Series User Manual

15
CM
Edition 10-2008

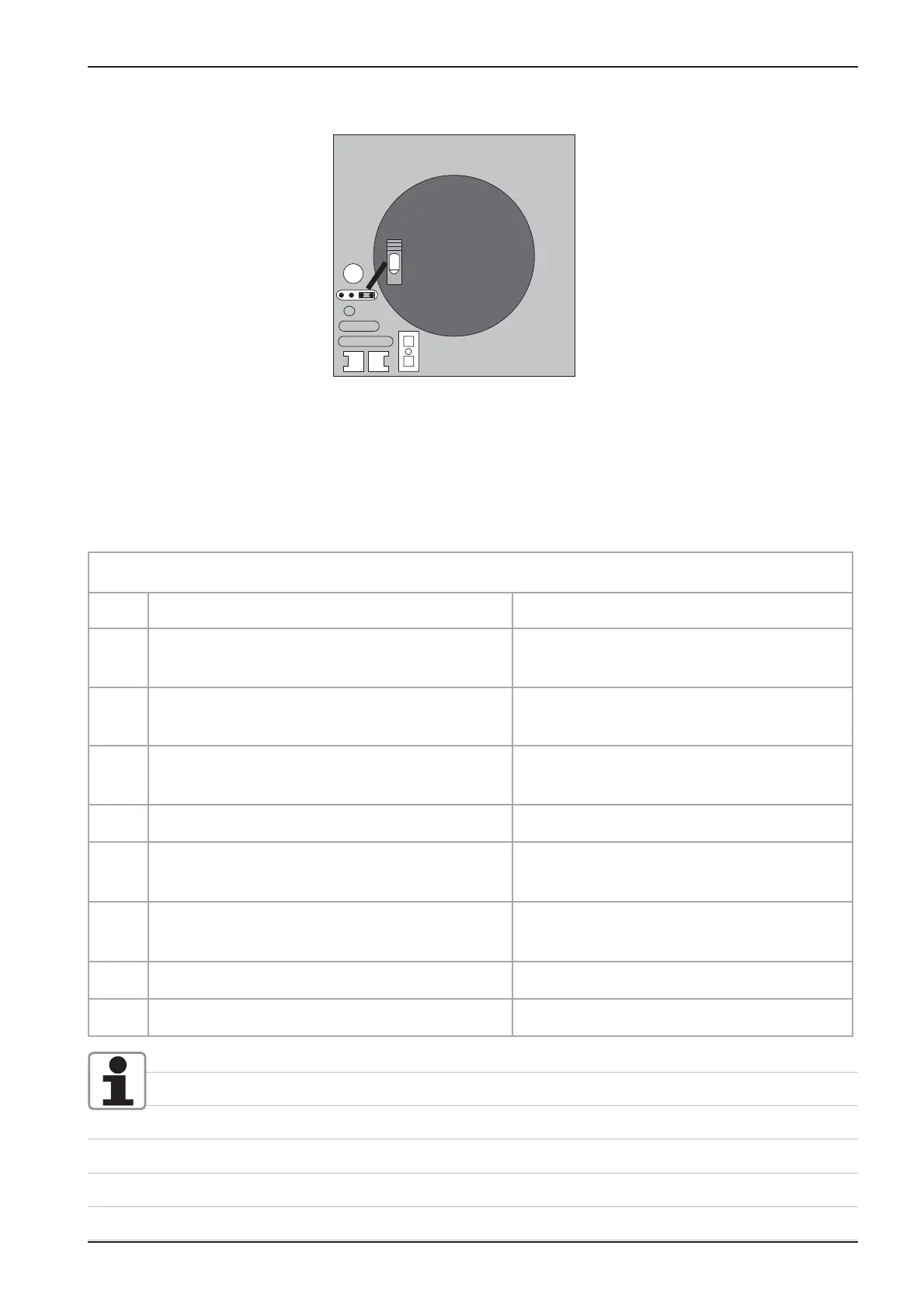

Fan motor 40.00.274
Jumper 40.01.581 is used on  oor model 201 and 202 for top position motor only!
Jumper is not used on models 61 - 102 with one motor only!
If jumper is not set correctly E12 will be displayed!
LED code fan motor SCC and CM from 04/2004
Reason Remedy
1x Motor doesn’t start, no changing
signal from hallsensor
Check for motor blockage or change motor.
2x Voltage too low on motor pcb Check supply voltage or
change motor.
3x Voltage too high on motor pcb Check supply voltage or
change motor.
4x rpm measurement defective Change motor.
5x Motor pcb temperature >105°C Check cooling system (cooling fan, air
intake  lter), otherwise change motor
6x Supply voltage <80V Check power supply
(F1-F2)
7x Motor pcb defective Change motor.
8x Motor pcb defective Change motor.
Units 3AC400-480V (without neutral) are equipped with motor 40.00.276 (3-phase supply)
This motor is equipped with a 4 pole plug for the supply voltage.
LED
Jumper
