Rational SCC Series User Manual

14
CM
Edition 10-2008
X7
X19
X20
F1 F2
Transformer
0,1 AT
2 AT
1
1
X7
X19
X20
X18
X23
X31
RS 485
X8
X12
X26
X27
X32X24
X30
RS 232
X63
X3X4X6
X2
X50
2 AT
1
2
3
4
on
off
1
1
1
1
1
1
1
F6.1
F6.1
2 AT
2 AT
X16
X16
F6
F6
42.00.004
42.00.047
X2 B3 Core temperature
X3 B1 Interior cabinet
X4 B2 Quenching / Steam control
X6 B5 Steam generator
X7 ON - OFF switch
X8 Buzzer
X12 Level electrode
X 16 power supply from transformer (42.00.047)
X18 SC - pump
X19 Solenoid valves
X20 Energy management system / Sicotronic
X23 Vent hood (signal door open / closed)
X24 SSR
X26 SSR pulsing (USA version only)
X27 Door contact switch
X30 Serial interface (RS232)
X31 BUS interface
X32 Timer / Core Temp. Potentiometer
X50 external EEPROM
X63 Not used
Since February 2006 PCB 42.00.004 is replaced by 42.00.047.
(Conversion kit: 87.00.139, pls. see Technical info 04-2006)
The transformer on the new PCB 42.00.047 is no more existing and replaced by
external transformer 40.00.227

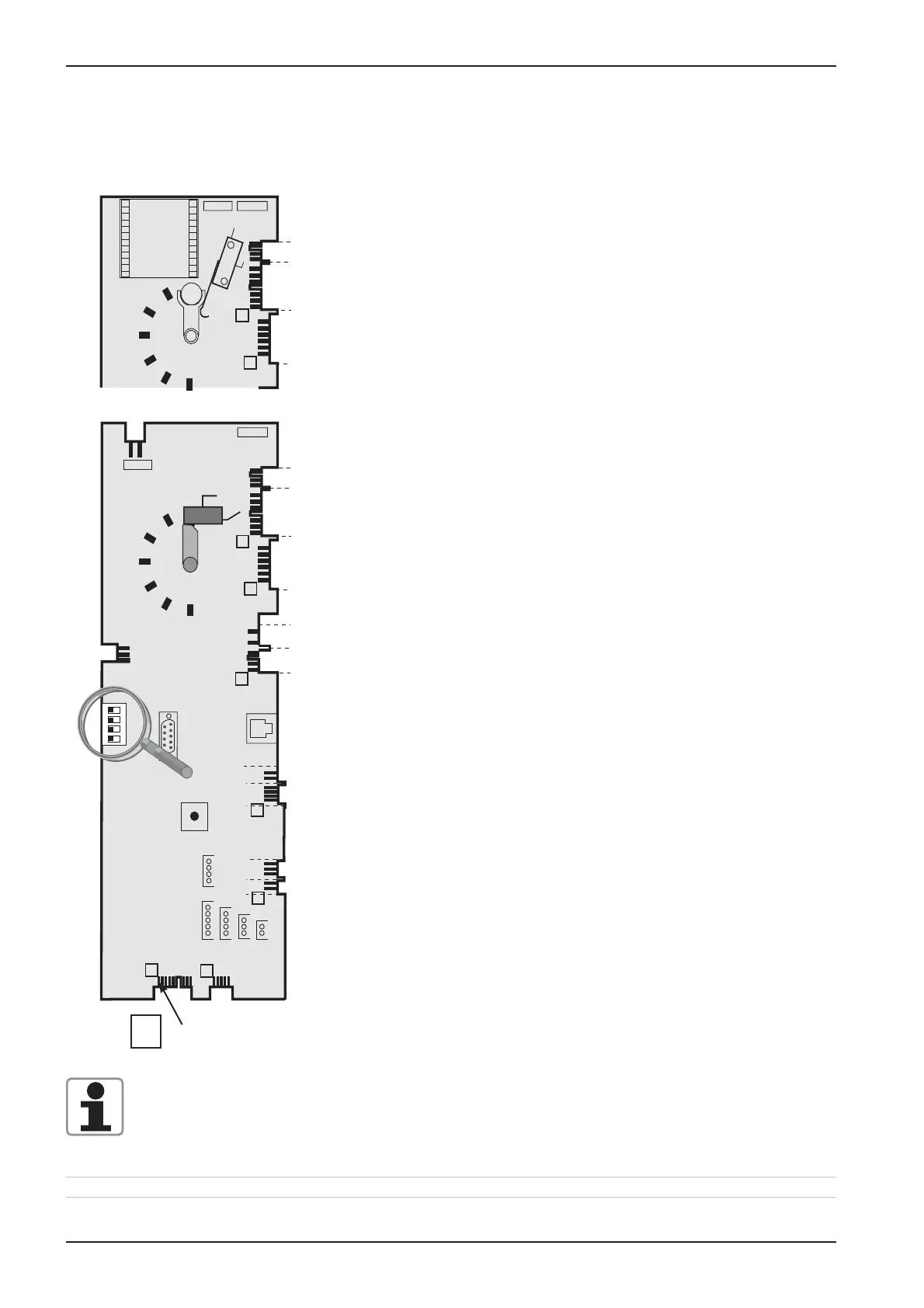

CM PCB
1
Temperatur
Poti
42.00.004 from 04-2004 ---- 42.00.047 from 02-2006
Counting sequence
