RL78/G13 CHAPTER 4 PORT FUNCTIONS

R01UH0146EJ0100 Rev.1.00 226

Sep 22, 2011

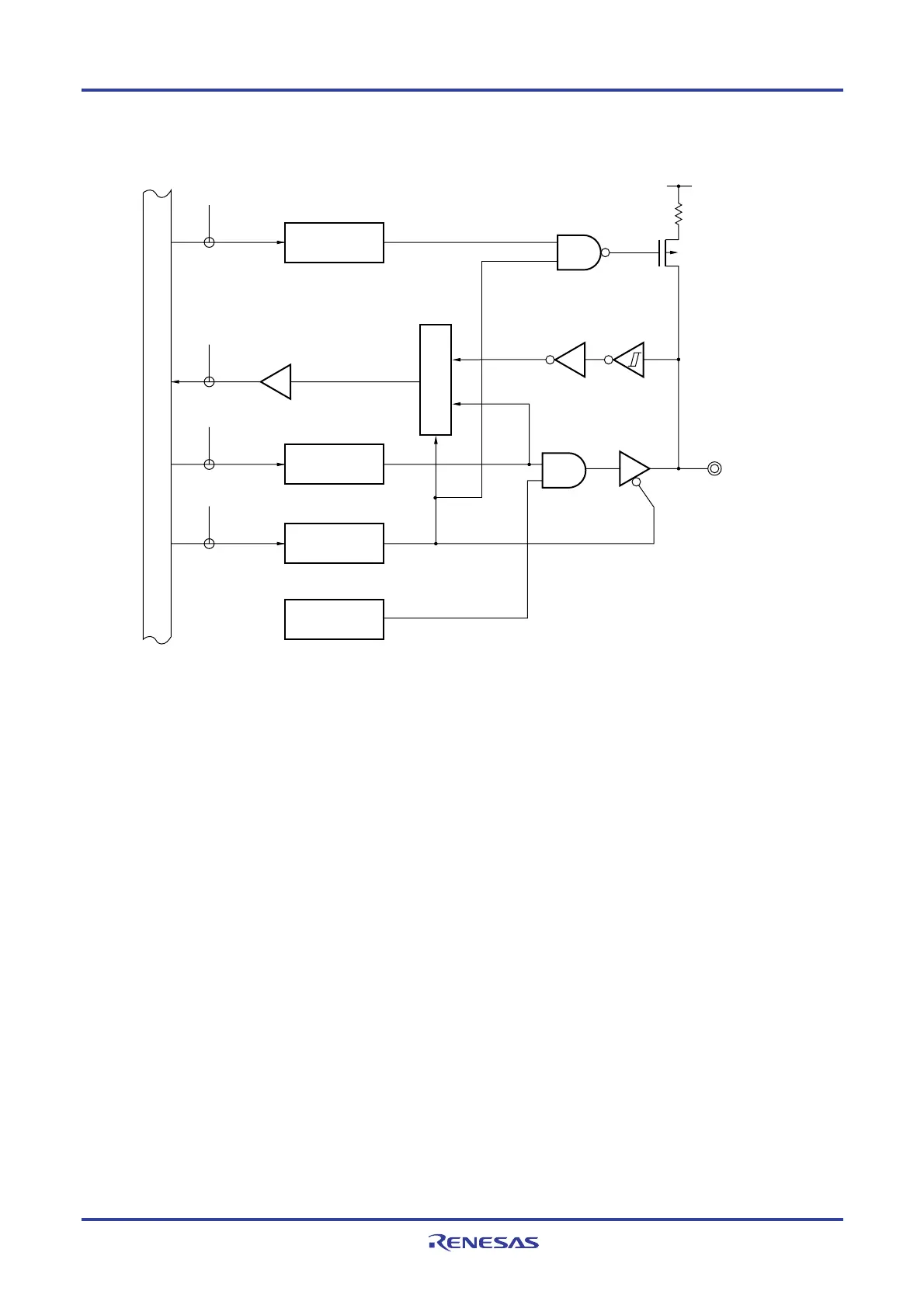

Figure 4-45. Block Diagram of P97

P97/SO11

PORT

WRPM

PU97

PM97

EVDD

P-ch

PU9

PM9

Output latch

(P97)

Selector

Alternate

function

Internal bus

P9: Port register 9

PU9: Pull-up resistor option register 9

PM9: Port mode register 9

RD: Read signal

WR××: Write signal
