RL78/G13 CHAPTER 19 RESET FUNCTION

R01UH0146EJ0100 Rev.1.00 870

Sep 22, 2011

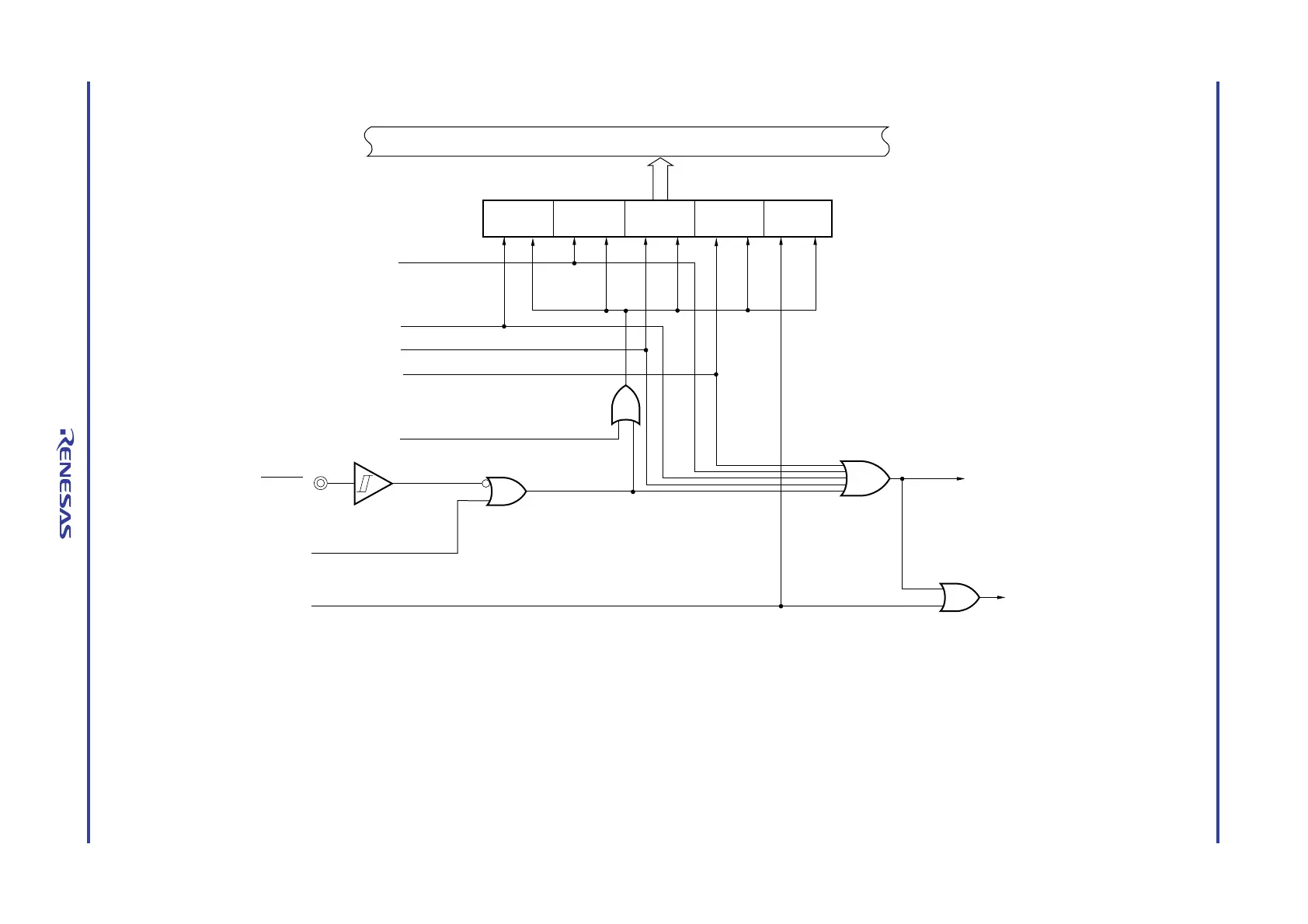

Figure 19-1. Block Diagram of Reset Function

Internal bus

Reset control flag

Set Set Set Set Set

ClearClearClearClearClear

Reset signal to LVIM/LVIS register

Reset signal

Voltage detector reset signal

Power-on reset circuit reset signal

RESF register read signal

Reset signal by execution of illegal instruction

Reset signal by RAM parity error

Reset signal by illegal-memory access

Watchdog timer reset signal

RPERF IAWRFWDTRF

RESET

TRAP

LVIRF

Caution An LVD circuit internal reset does not reset the LVD circuit.

Remarks 1. LVIM: Voltage detection register

2. LVIS: Voltage detection level register
