ECODRIVE03-SGP-03VRS Diagnostic Message Descriptions 1-3
DOK-ECODR3-SGP-03VRS**-WA01-EN-P
If more than one diagnostic message is waiting, then the message with
the highest priority will be displayed.

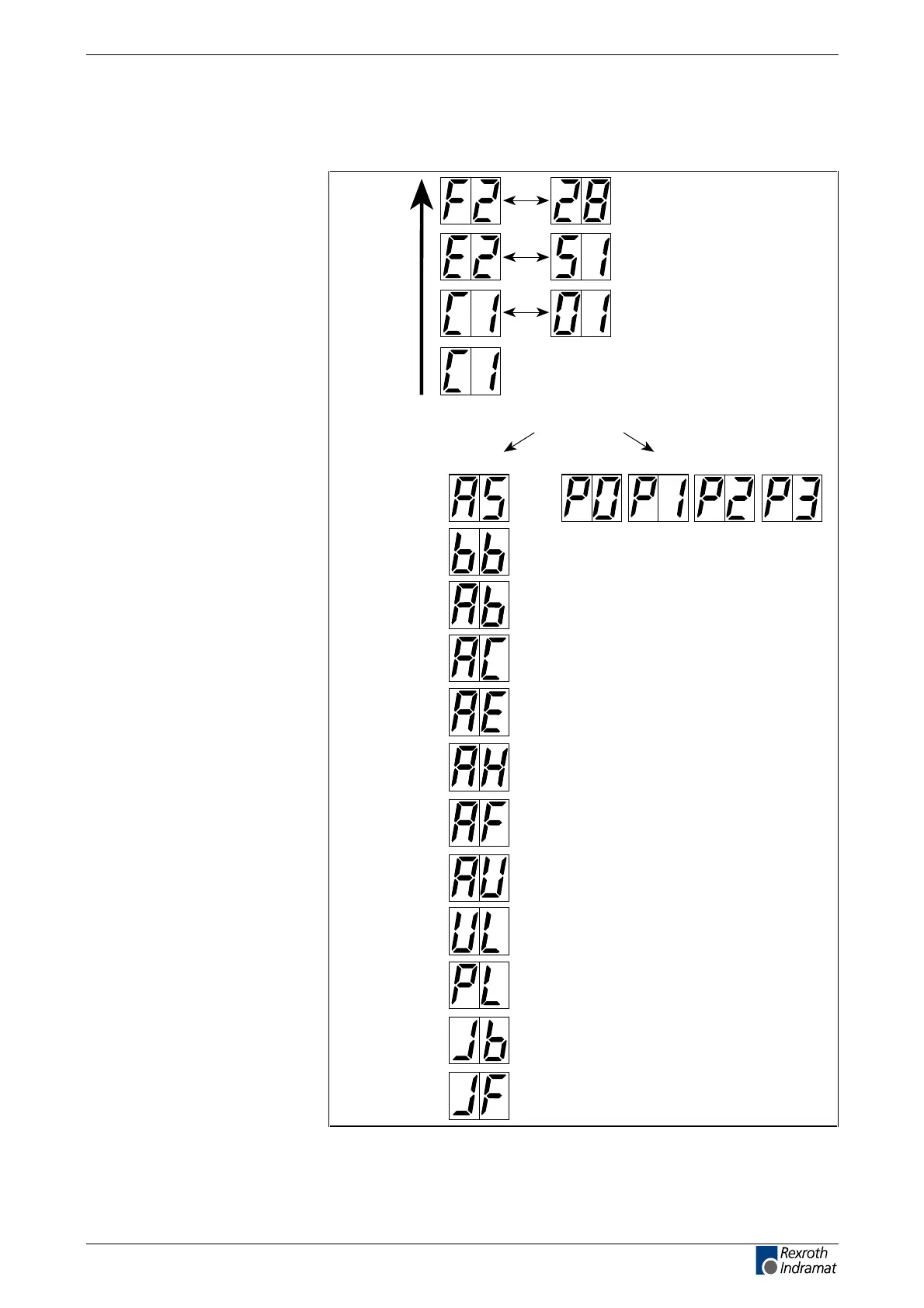

The following graphic classifies operation status in order of importance.
Da0003f1.fh7
communication phase
P
R
I
O
R
I
T
Y
Ready for operation?
yes no
error
warning
command error
command active
drive interlock
active
ready for
operation
drive
ready
drive check +
adjustment
drive is following
operating mode
drive
shutdown
drive
halt
basic load
required
jogging: drive
moves forward
parameter
loading
drive macro
moves drive
jogging: drive
moves backward
Fig. 1-3: Priority-dependent diagnostic message display
