3.4 DUPLEX UNIT

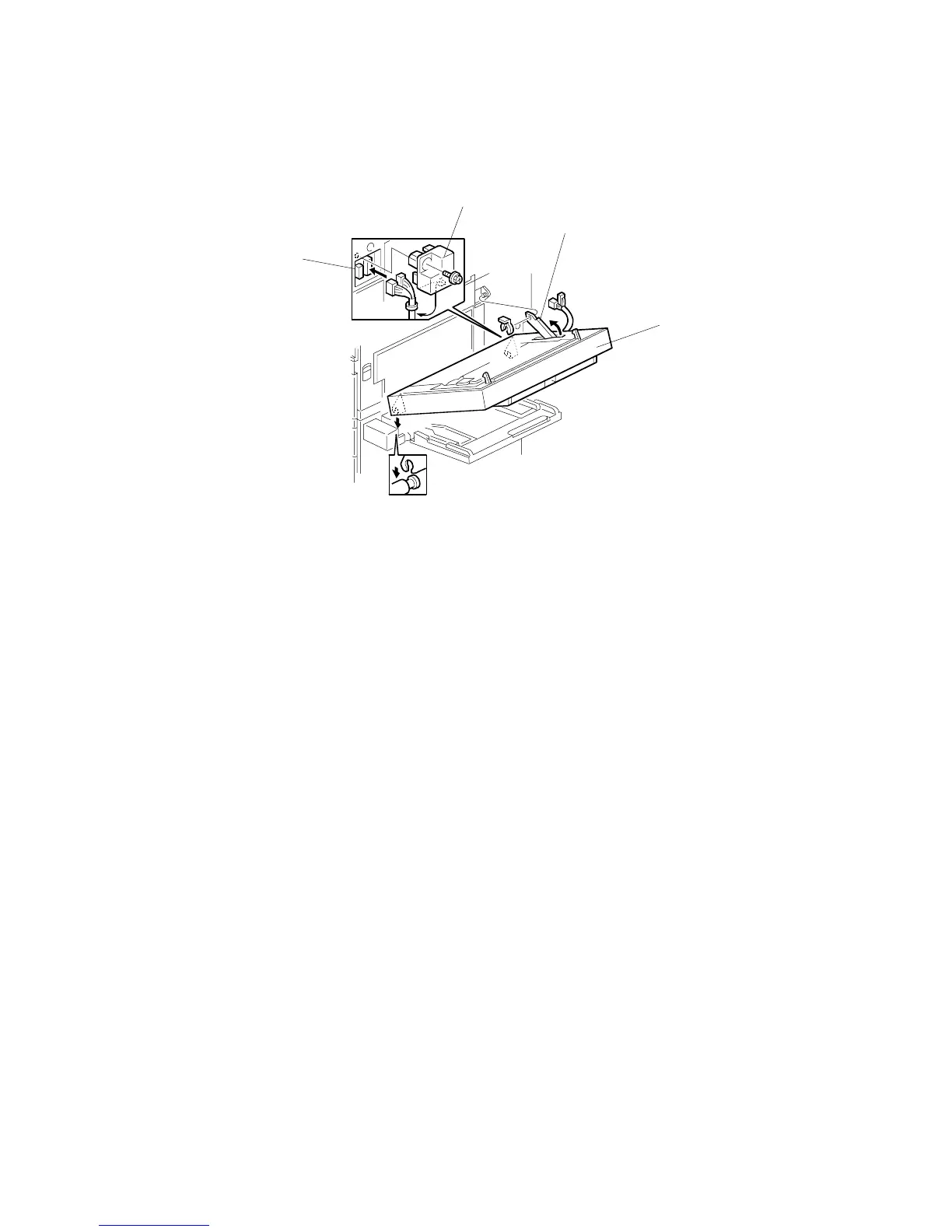

1. Connector cover [A] ( x1)
2. Duplex connectors [B] ( x2)
3. Duplex support arm [C] ( x1)
4. Duplex unit [D]
NOTE: Grip the duplex unit with both hands, slowly rotate it towards you and
then lift up.
