1.11 PLATEN COVER INSTALLATION (G329)
1. Install [A] ( x 2) on the top cover as shown.
2. Position the platen cover bracket [B] on the heads of the stud screws and slide
the platen cover [C] to the left.

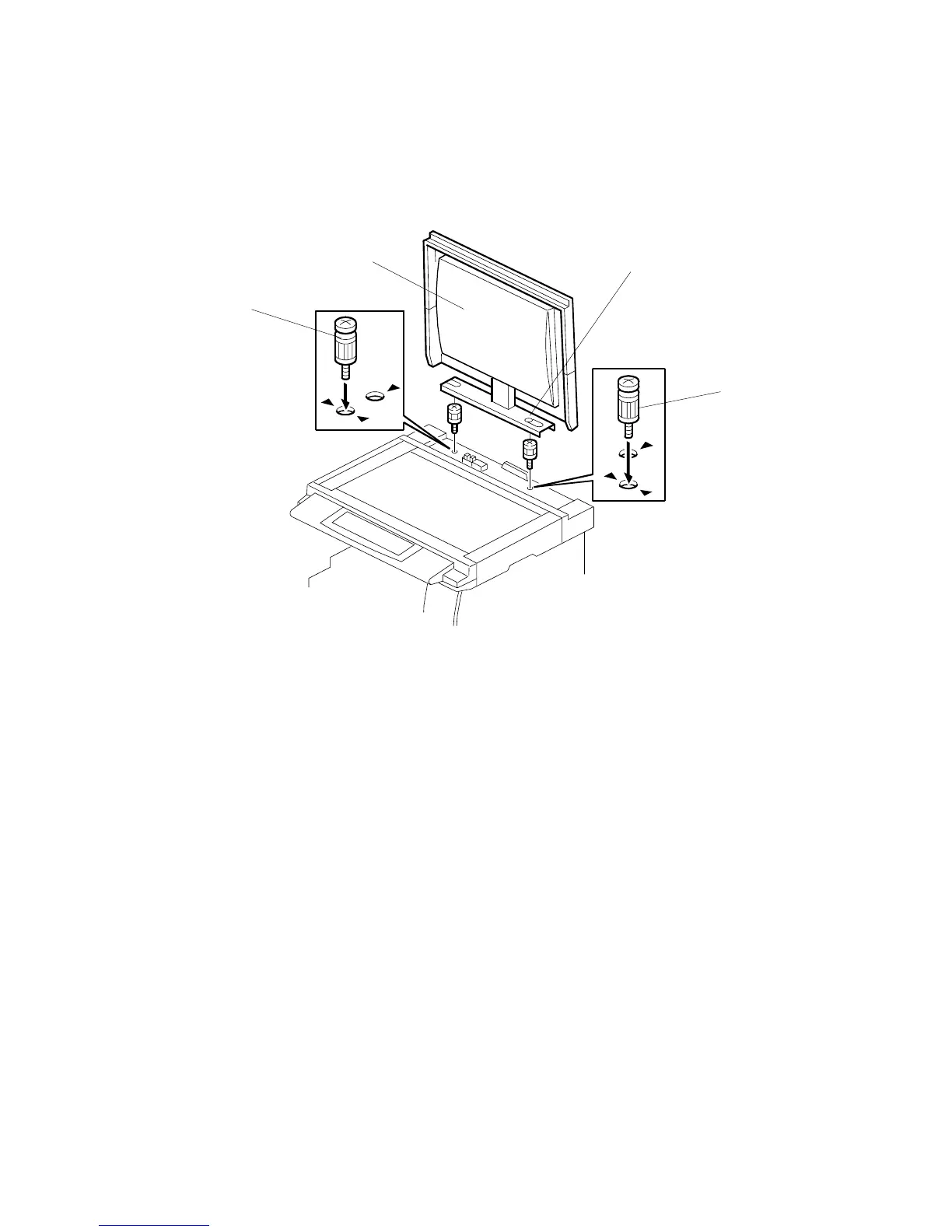

B079I904.WMF
[A]
[A]
[B]
[C]
