Ricoh A-C4 - Development Filter

20 June 2005 DEVELOPMENT
3-39
Replacement
Adjustment
3.12.2 DEVELOPMENT FILTER
1. Development unit ( 3.12.1)

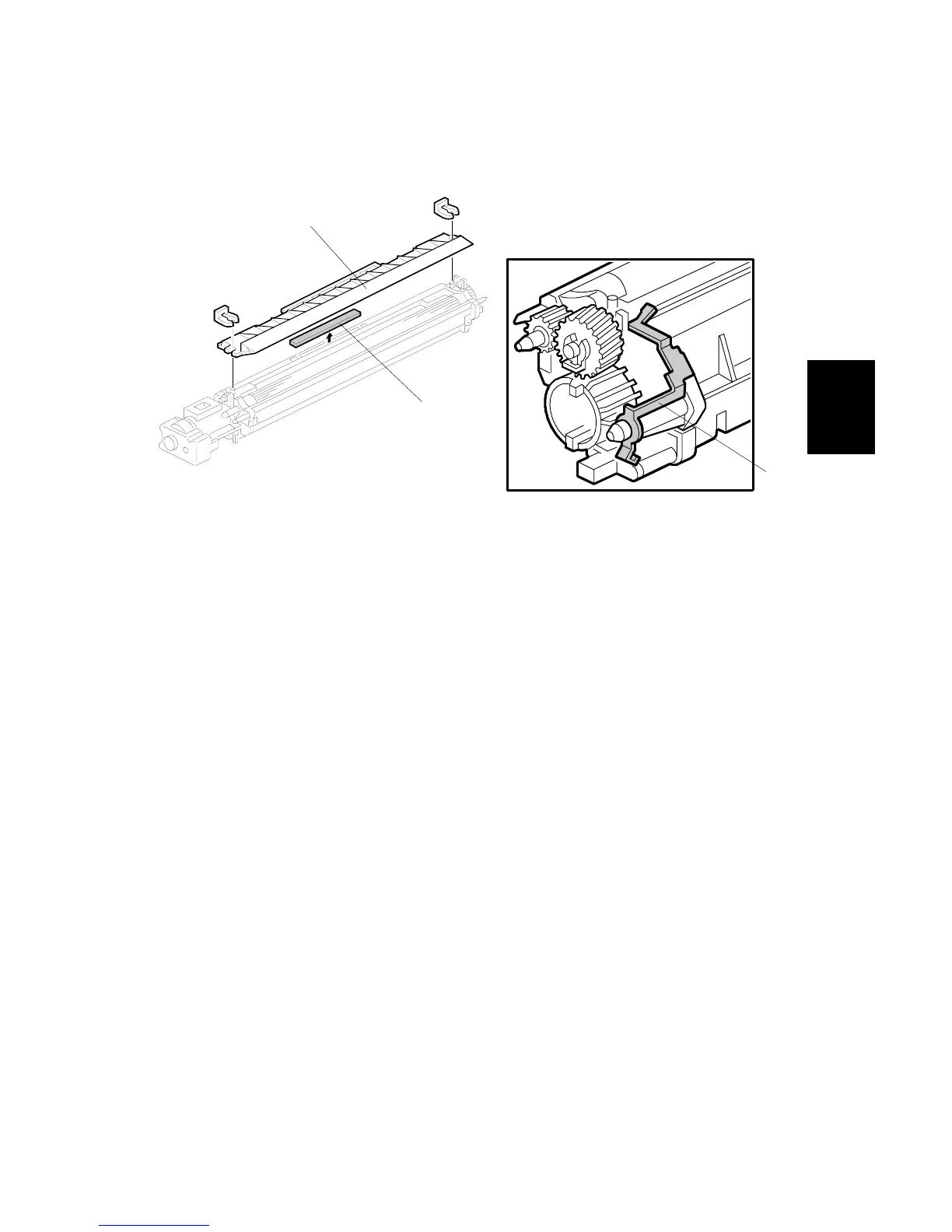

2. Upper development cover [A] ( x2)
3. Development filter [B]
NOTE: Make sure that the surface with the red mark is facing up.
4. Make sure that the ground plate [C] is positioned correctly.
B195R944.WMF
B195R945.WMF
[A]
[B]
[C]
