PAPER FEED 20 June 2005
3-50

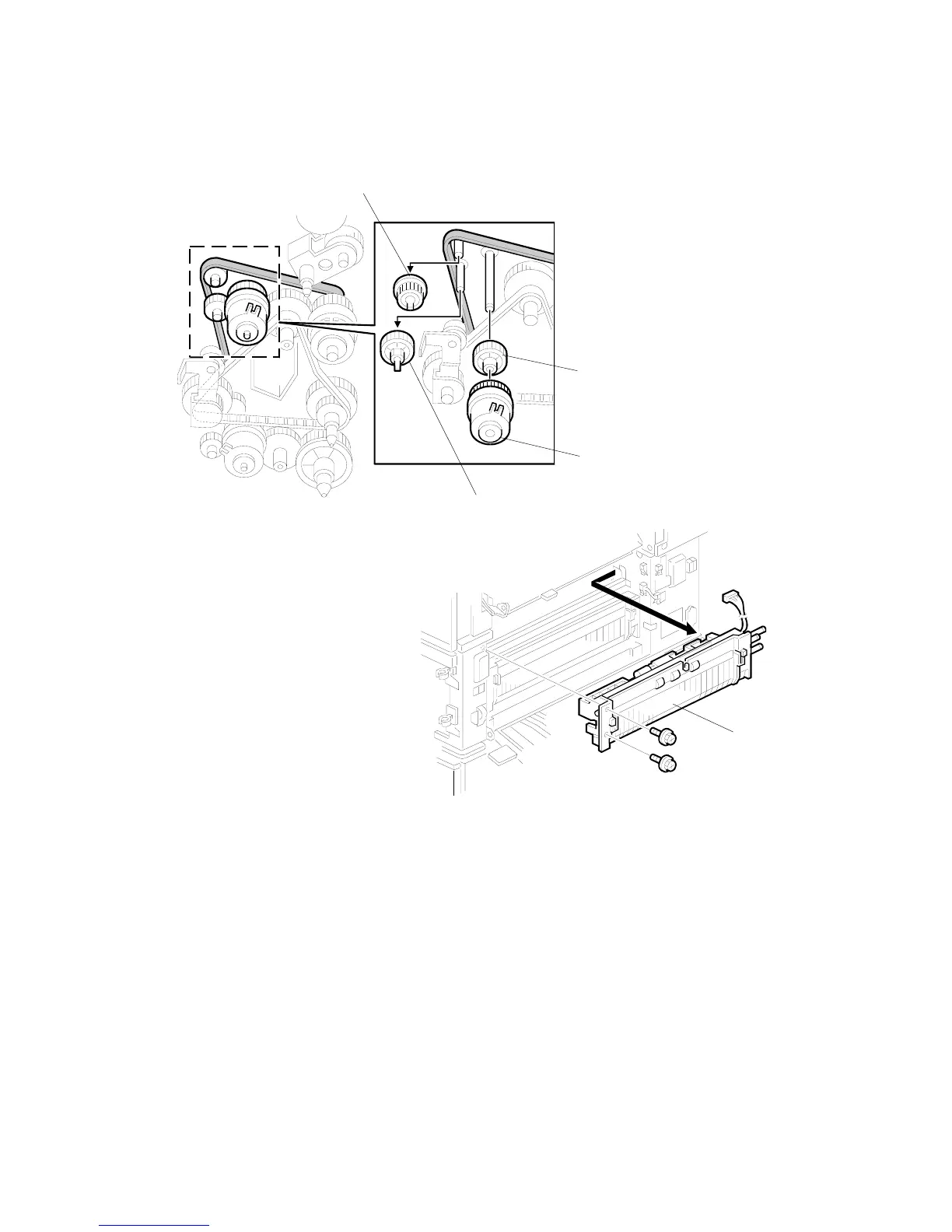

3.14.4 UPPER PAPER FEED UNIT FOR TRAY 1
1. Upper paper tray
2. Right lower cover. (3.14.2)
3. Right upper cover (3.5)
4. Upper paper feed clutch [A] (3.14.3 )
5. 3 relay gears [B]
6. Upper paper feed unit [C] ( x2, x1)
B195R959.WMF
B195R960.WMF
[A]
[B]
[B]
[B]
[C]
