Ricoh A-C4 - Registration Roller Dust Blade

PAPER FEED 20 June 2005
3-58
3.14.11 REGISTRATION ROLLER DUST BLADE

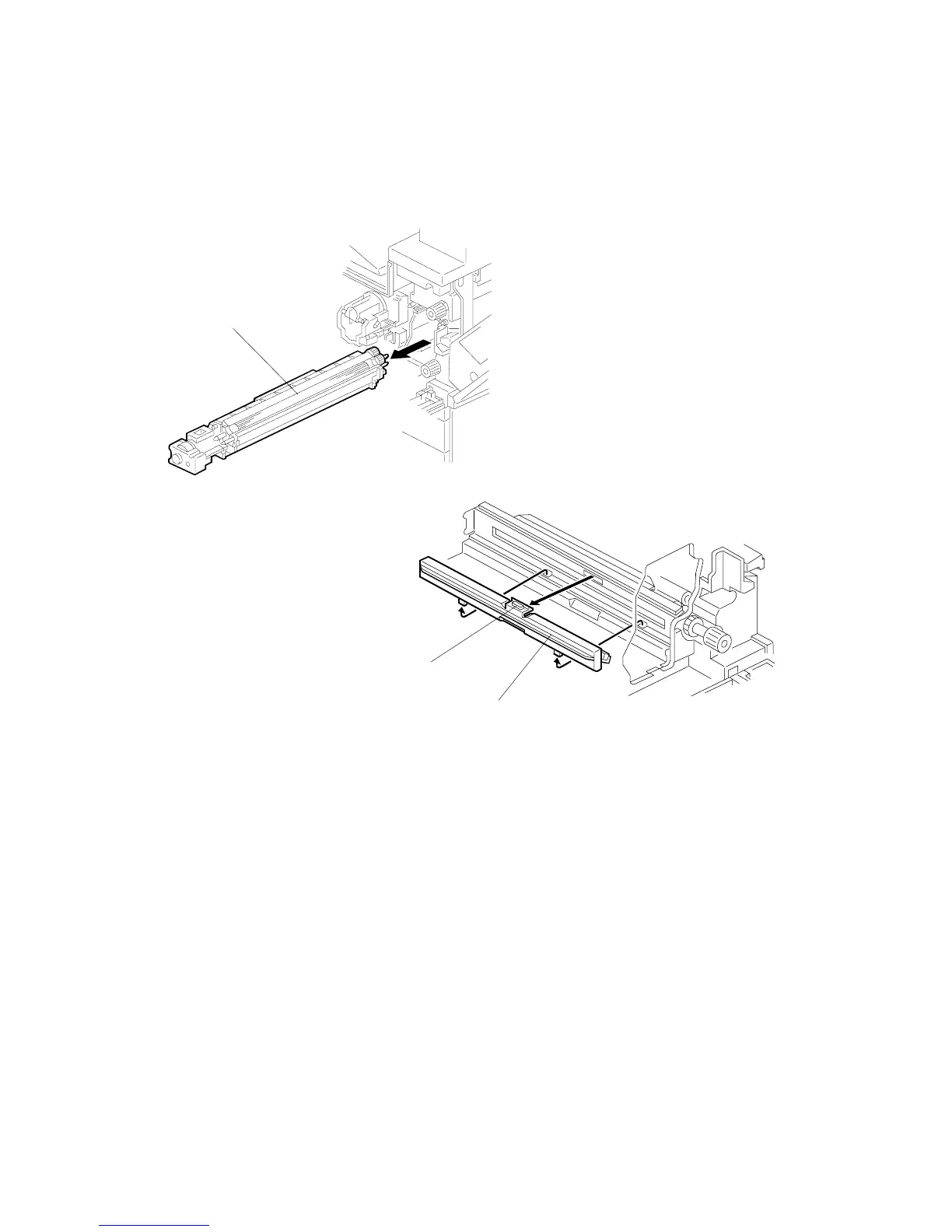

1. Open the duplex unit and open the right door.
2. Remove the PCU (3.11.1)
3. Remove the development unit [A].
4. Press the top of the blade [B] to unlock it and open it to the left.
5. Remove the dust blade [C] from the machine.
B195R987.WMF
B195R988.WMF
[B]
[C]
[A]
