3.15.2 FUSING UNIT EXIT GUIDE
1. Fusing unit ( 3.15)

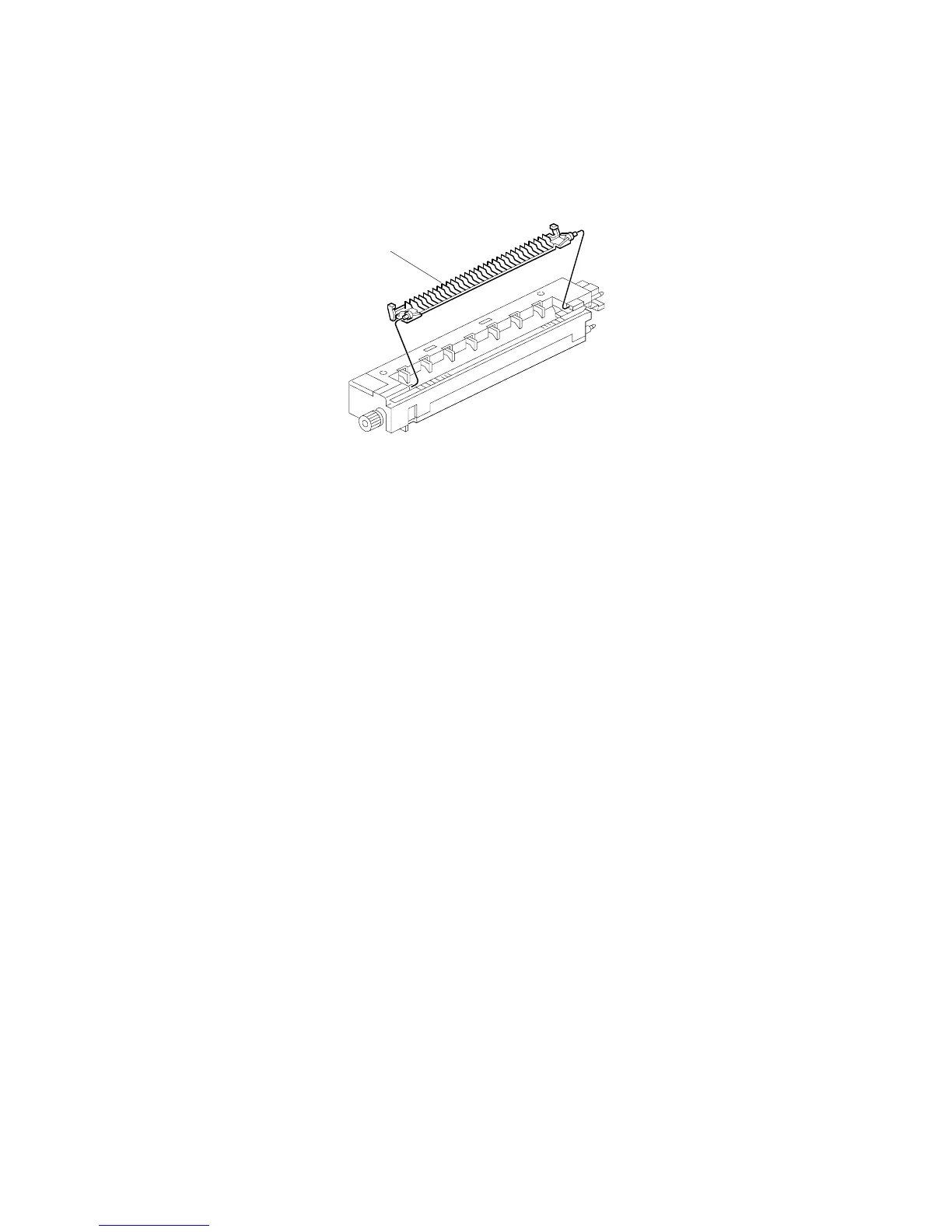

2. Exit guide [A]. Press the guide to the left and then press on the right end to
release the peg from the hole.
B195R990.WMF
[A]
