Ricoh A-C4 - Drive Area; Registration Clutch, Transfer Belt Contact Clutch

DRIVE AREA 20 June 2005
3-80
3.18 DRIVE AREA
3.18.1 REGISTRATION CLUTCH, TRANSFER BELT CONTACT
CLUTCH

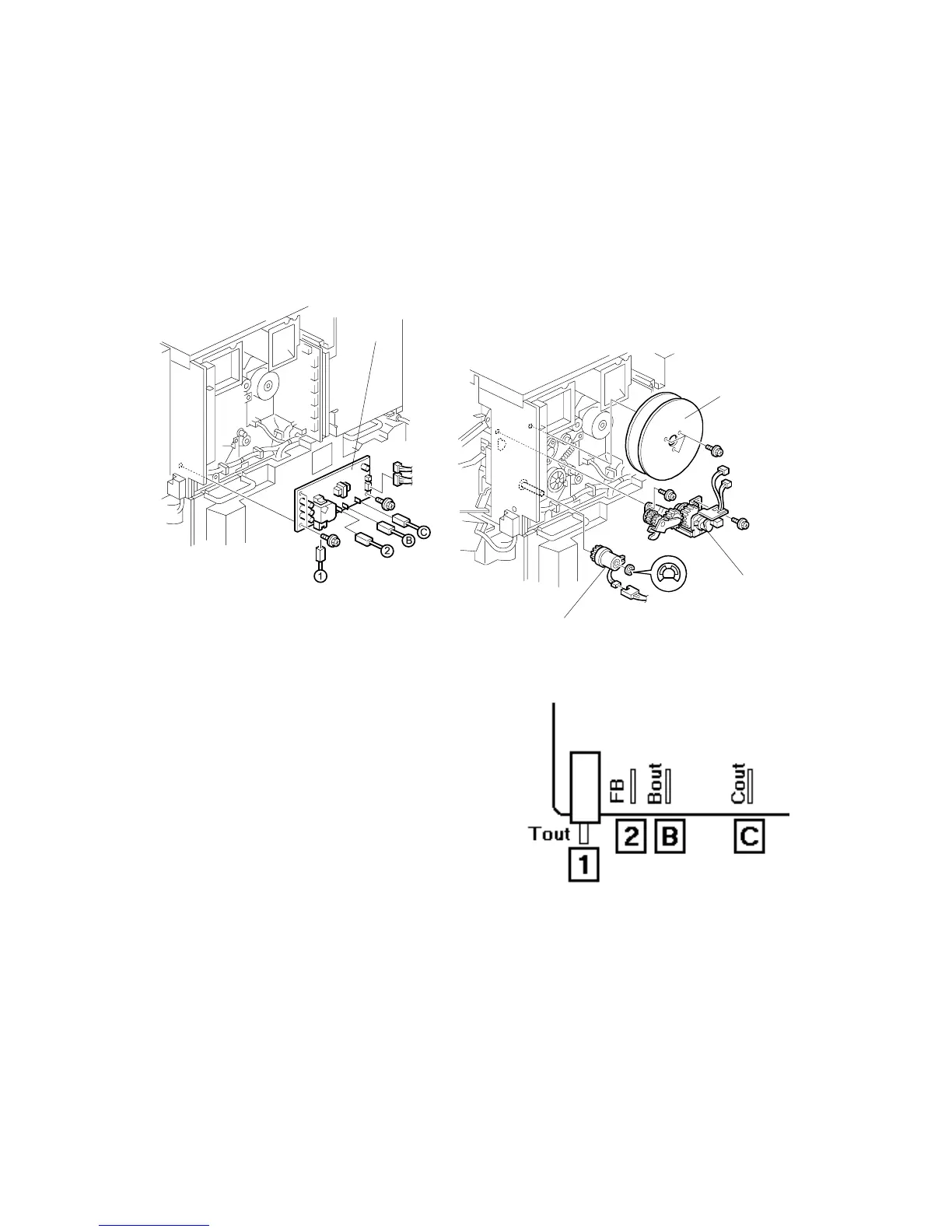

1. Rear upper cover ( x2) (3.7.1)
2. High voltage supply board [A] (
x6,  x3)
NOTE: Make sure that you re-
connect the wires in the correct
order. They are labeled:
1 Î 2 Î B Î C
3. Flywheels [B] ( x3)
4. Registration clutch [C] ( x1, 
x1)
5. Transfer belt contact clutch [D] ( x2,  x2)
B195R807.WMF
B195R808.WMF
B195R809.WMF
[A]
[C]
[D]
[B]
