Ricoh A-C4 - Exposure Glass

SCANNER UNIT 20 June 2005
3-10

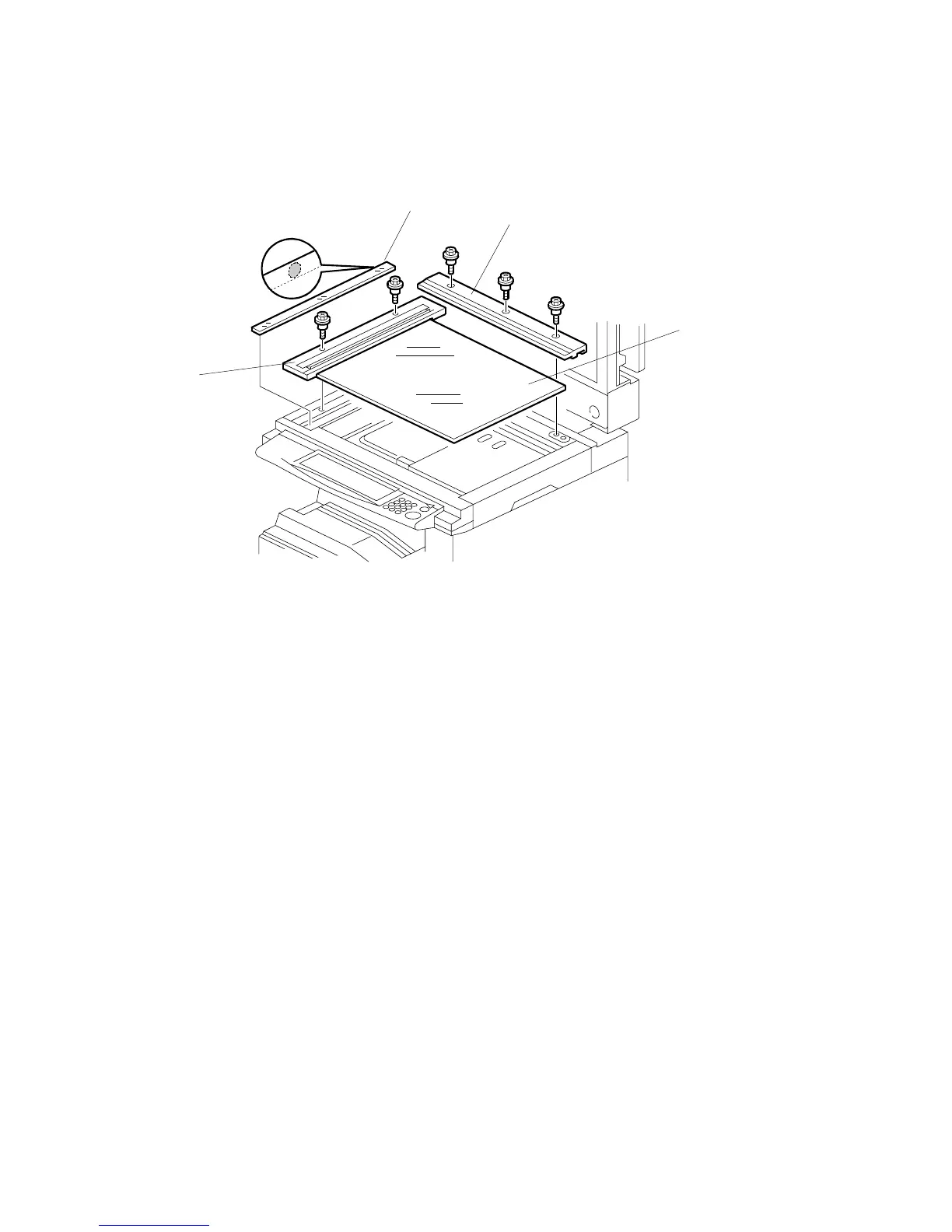

3.9.2 EXPOSURE GLASS
1. Open the ARDF or platen cover.
2. Rear scale [A] ( x3)
3. Left scale [B] ( x2)
4. Exposure glass [C]
5. DF exposure glass [D]
NOTE: When reinstalling the exposure glass, make sure that the white dot is
positioned at the rear left corner.
B195R907.WMF
[A]
[B]
[D]
[C]
